Engine - K SeriesAll engines · page 1 of 5

All engines

All engines

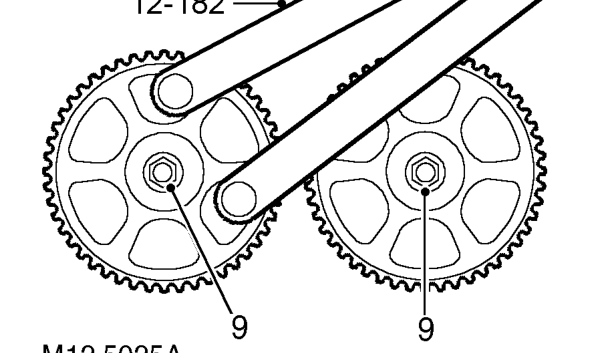

  1. Restrain camshaft gears using 12-182.
  2. Remove bolts and plain washers securing camshaft gears to camshafts.
  3. Remove camshaft gear alignment tool LRT-12-134.
  4. Mark camshaft gears for identification when refitting.
  5. Remove 2 camshaft gears.
All engines – Remove 2 camshaft gears.
  1. Remove 4 bolts securing camshaft timing belt rear cover to cylinder head and block.
  2. Remove camshaft timing belt rear cover.
All engines – Remove camshaft timing belt rear cover.

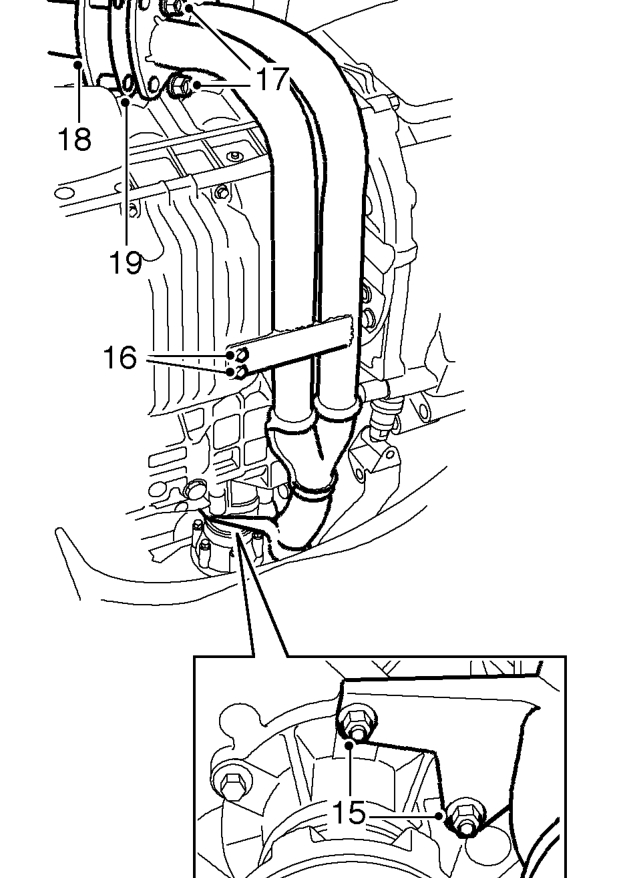

  1. Remove 2 nuts securing exhaust front pipe to mounting bracket on IRD unit housing.
  2. Remove 2 bolts securing exhaust front pipe to sump.
  3. Remove 4 nuts securing exhaust front pipe to exhaust manifold.
  4. Release exhaust front pipe from exhaust manifold.
  5. Remove and discard exhaust manifold flange gasket.
