All engines (page 3 of 5)

31. Position absorbent cloth around fuel feed pipe connection to collect spillage.

WARNING: Fuel pressure of up to 3.5 bar will be present in the system of petrol vehicles, even if the engine has not been run for some time. Always depressurise the system before disconnecting any components in the fuel feed line (between the fuel pump and the fuel rail). The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.

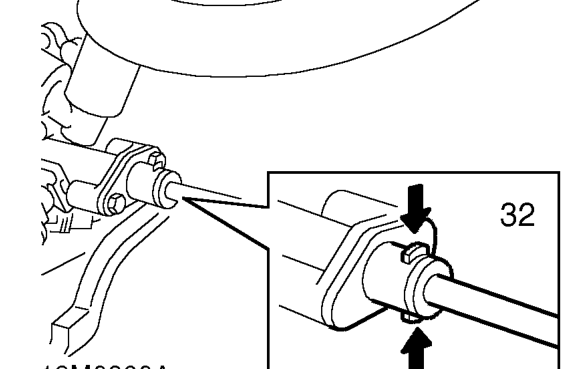

32. Depress plastic collar on feed pipe and release feed pipe from manifold.

CAUTION: Plug fuel system hoses and connections.

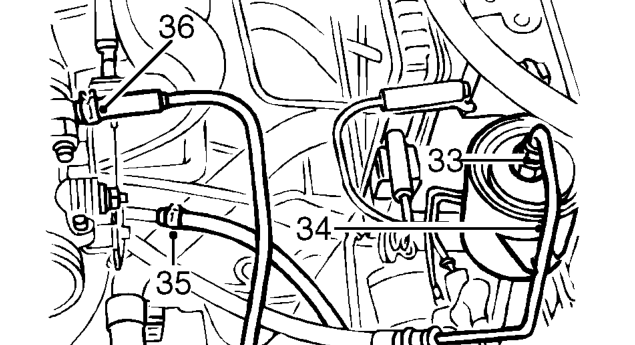

33. Release clip and disconnect purge hose from throttle housing.
34. Release throttle cable adjusting nut from abutment bracket.

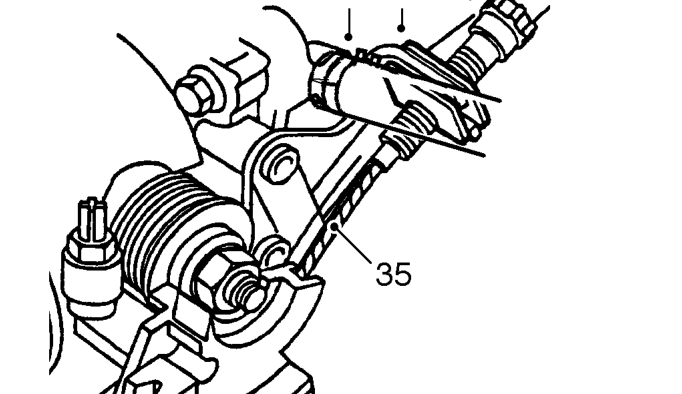

35. Release throttle cable from throttle cam.

36. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.

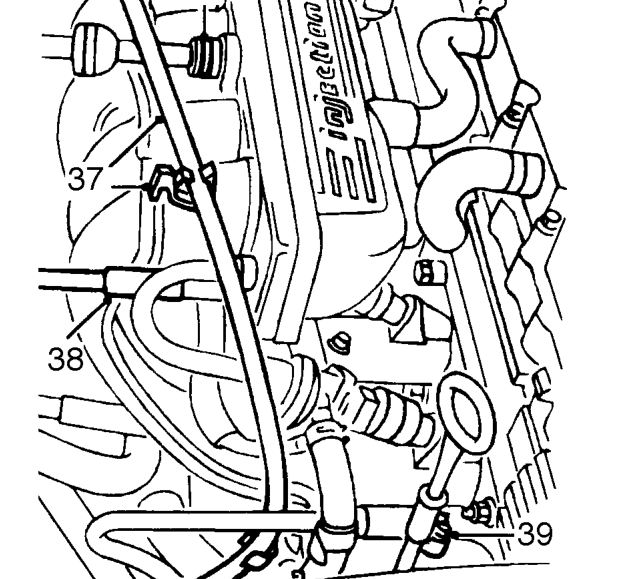

37. Release throttle cable from clip on inlet manifold.
38. Disconnect vacuum hose from inlet manifold.
39. Release clip and disconnect expansion tank hose from inlet manifold.
