OIL SUMP - ’K’ SERIES

Service repair no - 12.60.44

Remove

  1. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Drain engine oil. See MAINTENANCE.

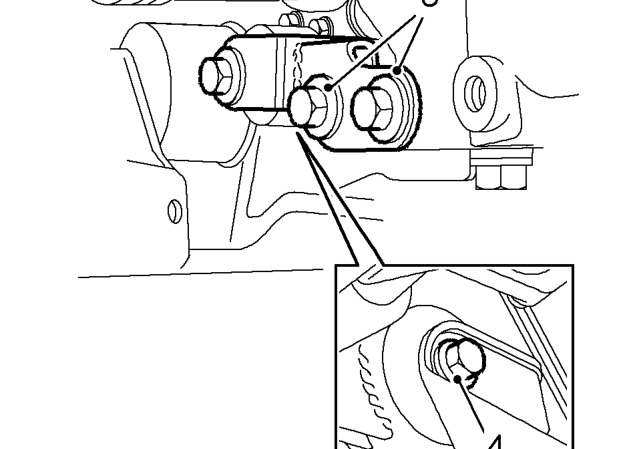

Oil sump - ’k’ series – Drain engine oil. See MAINTENANCE.
  1. Remove 2 bolts securing front of engine tie bar.
  2. Loosen rear bolt on engine tie bar and lower tie bar.

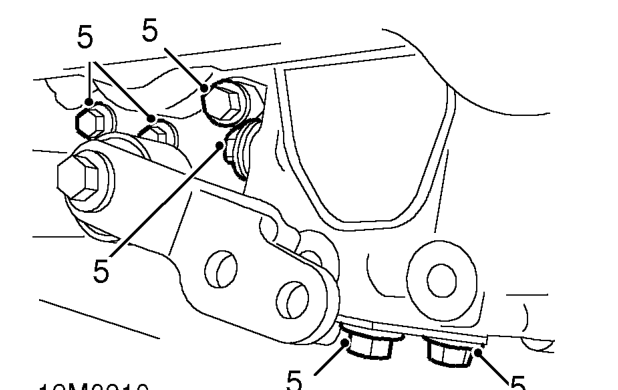

Oil sump - ’k’ series – Loosen rear bolt on engine tie bar and lower tie bar.
  1. Remove 6 bolts securing IRD lower support bracket and remove bracket.

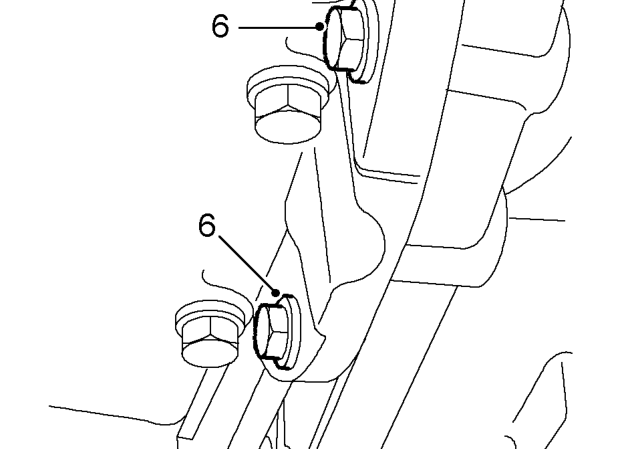

Oil sump - ’k’ series – Remove 6 bolts securing IRD lower support bracket and remove bracket.
  1. Remove 2 bolts securing sump to gearbox.

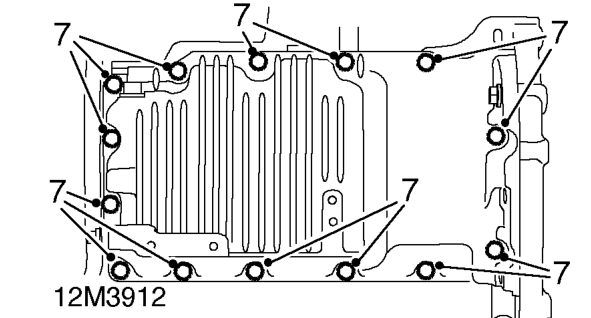

Oil sump - ’k’ series – Remove 2 bolts securing sump to gearbox.
  1. Noting fitted positions of 2 longest bolts, remove 14 bolts securing sump to engine.
  2. Gently tap sump sideways to break sealant bond; remove sump.

CAUTION: Do not lever between sump and bearing ladder.
