Land Rover Freelander Workshop Manual (1998-2000)05 · Engine - K Series
05 · Engine

Mounting - engine - LH - ’k’ series

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Mounting - engine - LH - ’k’ series
Engine - K SeriesMounting - engine - LH - ’k’ series · page 1 of 2

Refit

  1. Clean mating surfaces of camshaft cover and carrier.
  2. Clean inside of camshaft cover. If necessary, wash oil separator elements in solvent and blow dry.

CAUTION: If camshaft cover gasket is to be renewed, fit new gasket with ’EXHAUST MAN SIDE’ mark towards exhaust manifold.

Clean inside of camshaft cover. If necessary, wash oil separator elements in solvent and b

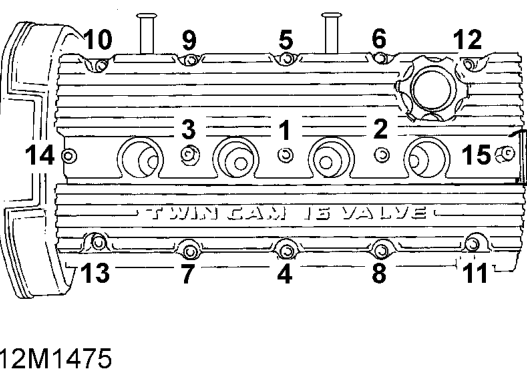

  1. Fit camshaft cover to camshaft carrier. Fit bolts and working in sequence illustrated, tighten progressively to 10 Nm.
  2. Connect HT leads to plugs and secure mounting rubbers in camshaft cover.
  3. Connect breather hoses and secure with clips.
  4. Connect battery earth lead.
  5. Start engine and run to normal operating temperature is reached.
  6. Retorque cover fixings to 10 Nm.
  7. Fit spark plug cover, fit screws and tighten to 2 Nm.

MOUNTING - ENGINE - LH - ’K’ SERIES

Service repair no - 12.45.11

Remove

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Remove air cleaner assembly See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove LH front wheel.
Mounting - engine - lh - ’k’ series – Remove LH front wheel.

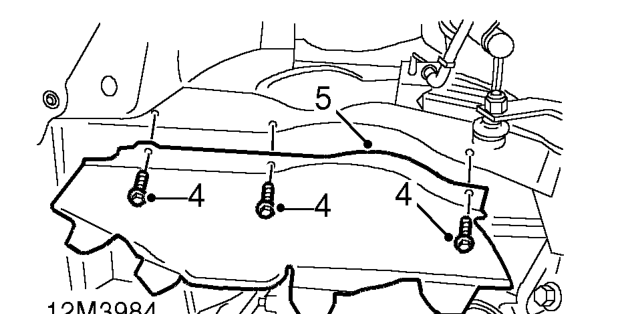

  1. Remove 3 bolts securing LH splash shield.
  2. Remove LH splash shield.
Mounting - engine - lh - ’k’ series – Remove LH splash shield.

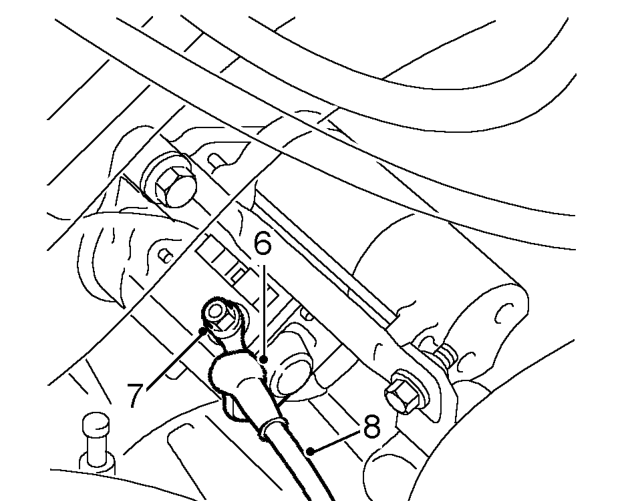

  1. Release cover from battery lead terminal on starter motor.
  2. Remove nut securing battery lead to starter motor terminal.
  3. Release battery lead from starter motor terminal.
