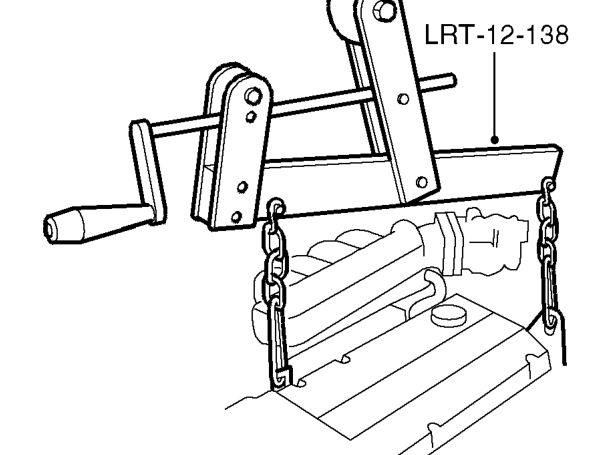

40. Attach suitable lifting eyes to engine.
41. Attach lifting cradle to chains and lifting eyes.

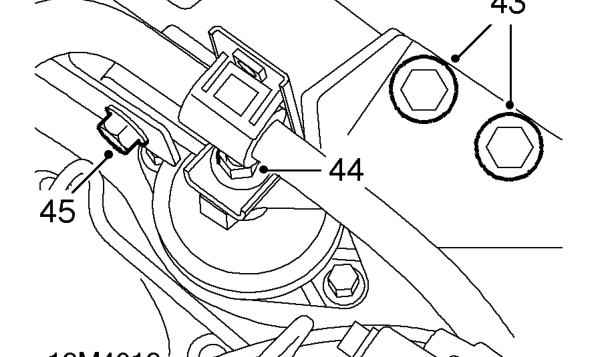

42. Take weight of engine on lifting chains.

43. Remove 2 bolts securing engine mounting bracket to engine.
44. Remove nut securing PAS pipes, release PAS pipes and position aside.

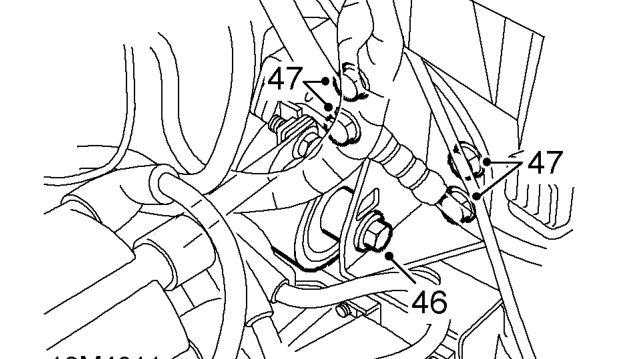

45. Remove bolt securing mounting bracket to tie rod and remove mounting bracket.

46. Remove through bolt from gear box mounting.
47. Remove 4 bolts securing gear box mounting bracket and remove bracket.
48. With assistance remove engine and gearbox from vehicle.

Refit

1. With assistance position engine and gearbox in vehicle.
2. Position gear box mounting bracket, fit and tighten bolts to 45 Nm.
3. Align engine to LH mounting, fit and tighten through bolt to 80 Nm.
4. Position RH engine mounting bracket, fit and tighten bolt securing bracket to tie rod to 80 Nm.
5. Position PAS pipes, fit and tighten nut to 80 Nm.
6. Fit bolts securing engine mounting bracket to engine, tighten to 170 Nm.
7. Release lifting chains and remove cradle.
8. Remove lifting eyes.

Vehicle with air conditioning

9. Position compressor, fit and tighten bolts to 25 Nm.
10. Fit alternator. See ELECTRICAL, Repairs.

All models

11. Connect IRD coolant hoses and secure clips.
12. Connect expansion tank vent hose and secure clip.
13. Connect expansion tank hose to coolant rail and secure clip.
