ENGINE ASSEMBLY - REMOVE/REFIT - ’K’ SERIES

Service repair no - 12.37.01/99

Remove

  1. Remove bonnet. See BODY, Repairs.
  2. Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
  3. Drain gear box oil. See MANUAL GEARBOX, Adjustments.
  4. Drain IRD unit. See MANUAL GEARBOX, Adjustments.
  5. If required: Drain engine oil. See MAINTENANCE.
  6. Remove both front drive shafts. See DRIVE SHAFTS, Repairs.
  7. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

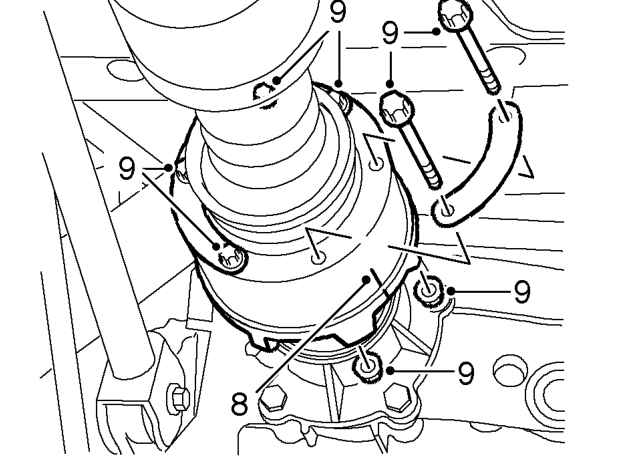

Engine assembly - remove/refit - ’k’ series – Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Reference mark propeller shaft and IRD unit flanges to aid reassembly.
  2. Remove 6 nuts and bolts securing propeller shaft to IRD unit, release propeller shaft and position aside.
Engine assembly - remove/refit - ’k’ series – Remove 6 nuts and bolts securing propeller shaft to IRD unit, release propeller shaft and

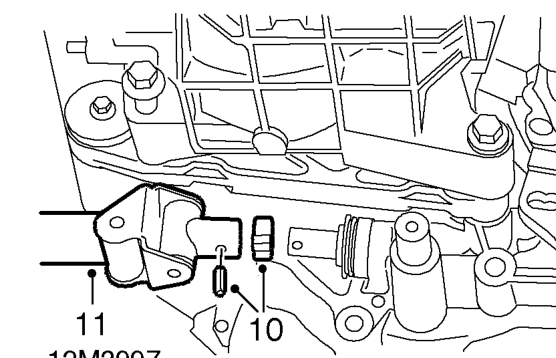

  1. Release gear change rod roll pin cover, remove and discard roll pin.
  2. Release gear change rod from gear box.
Engine assembly - remove/refit - ’k’ series – Release gear change rod from gear box.

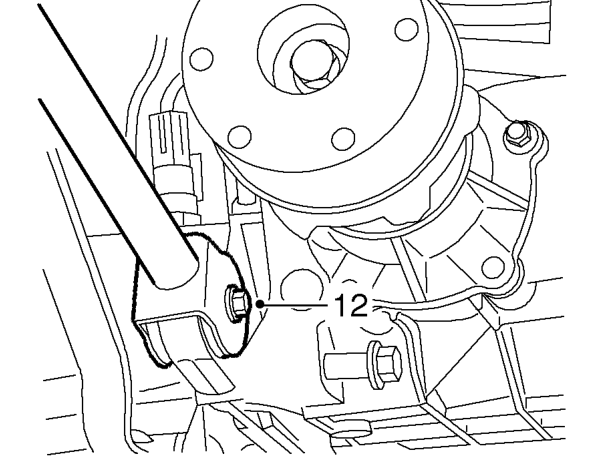

  1. Remove bolt securing gear change steady rod to gearbox.
