Engine - K SeriesSeal - rear - inlet camshaft

Refit

  1. Clean seal area of cylinder head and camshaft carrier, ensuring all traces of rubber are removed. DO NOT use a scraper as this may damage sealing surfaces.
Clean seal area of cylinder head and camshaft carrier, ensuring all traces of rubber are r

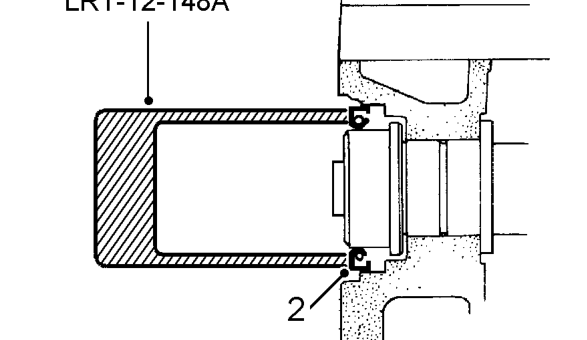

  1. Using tool LRT-12-148A fit new camshaft oil seal.

NOTE: This oil seal is coloured RED.

CAUTION: Oil seal must be fitted dry. Do not use tool LRT-12-148.

  1. Position coil bracket, fit and tighten bolts to 25 Nm
  2. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Connect battery earth lead.

SEAL - REAR - INLET CAMSHAFT

Service repair no - 12.13.10

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove distributor cap, rotor arm and anti-flash shield. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Seal - rear - inlet camshaft – Remove distributor cap, rotor arm and anti-flash shield. See ENGINE MANAGEMENT SYSTEM - ME

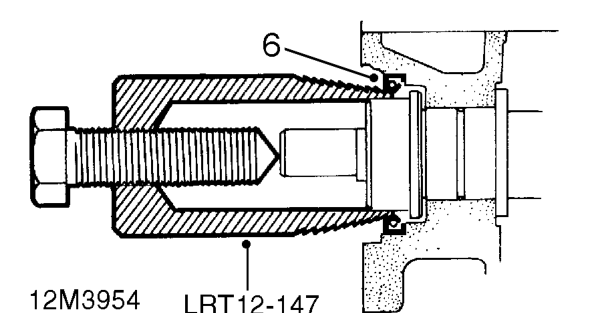

  1. Screw tool LRT-12-147 into camshaft rear oil seal.
  2. Remove seal by tightening centre bolt of LRT-12-147.
  3. Remove and discard camshaft oil seal.
