Vehicle with air conditioning
- Make
- Land Rover
- Model
- Freelander Workshop Manual
- Year
- 1998–2000
- Section
- Repairs › Vehicle with air conditioning
Engine - K SeriesVehicle with air conditioning

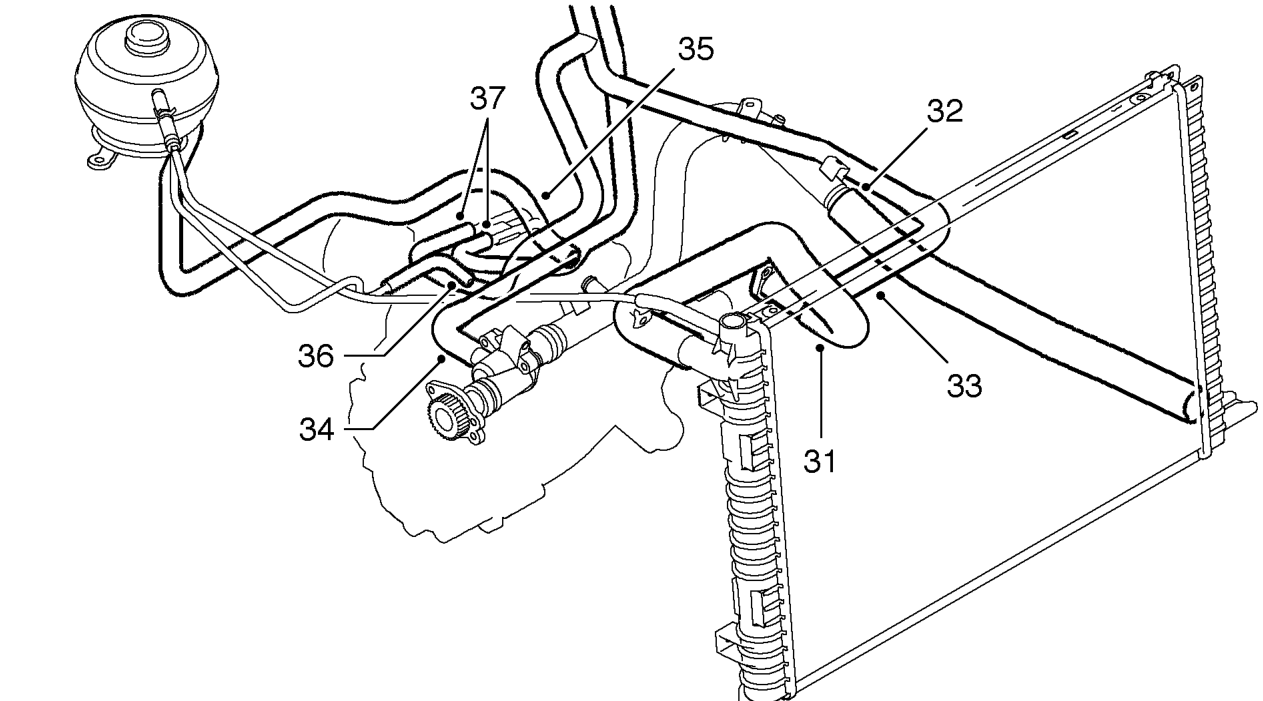

- Release clip and disconnect heater hose from coolant rail.
- Release clip and disconnect expansion tank hose from coolant rail.
- Release clip and disconnect expansion tank vent hose from engine.
- Release clips and disconnect IRD coolant hoses from IRD unit.
Vehicle with air conditioning
- Remove alternator. See ELECTRICAL, Repairs.
- Remove 4 bolts, release compressor and tie aside.
