Engine - K SeriesEngine assembly - remove/refit - ’k’ series · page 4 of 4
  1. Disconnect purge valve pipe from manifold.
  2. Disconnect throttle cable from cam and abutment bracket.
  3. Release cable from clip and position aside.
Release cable from clip and position aside.

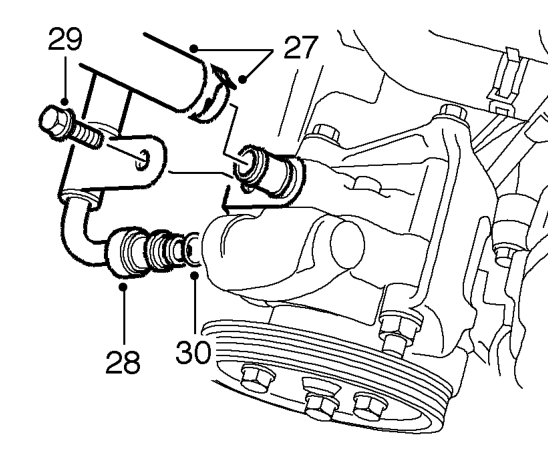

  1. Remove clip securing low pressure pipe to PAS pump and release pipe.
  2. Unscrew union securing high pressure pipe to PAS pump.
  3. Remove bolt securing pipe to bracket and release pipe.
  4. Collect ’O’ ring.

CAUTION: Plug the connections.

  1. Release clips, disconnect and remove top hose.
  2. Release clip and disconnect bottom hose from coolant rail.
  3. Release clip and disconnect heater hose from water outlet elbow.
