Land Rover Freelander Workshop Manual (1998-2000)05 · Engine - K Series
05 · Engine

Engine assembly - remove/refit - ’k’ series (page 3 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - K SeriesEngine assembly - remove/refit - ’k’ series · page 3 of 4
Diagram

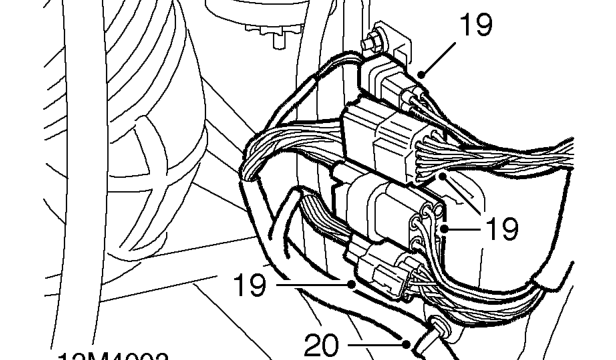

  1. Disconnect and release engine harness to main harness multiplugs.
  2. Release harness from securing clip.
Release harness from securing clip.

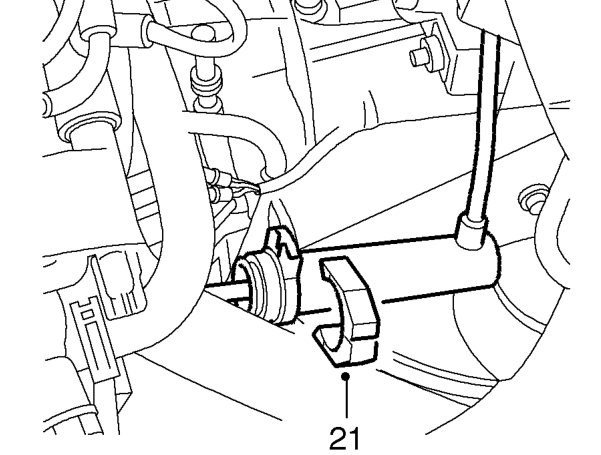

  1. Remove ’C’ clip securing clutch slave cylinder, release cylinder and position aside.
Remove ’C’ clip securing clutch slave cylinder, release cylinder and position aside.
  1. Disconnect fuel feed pipe from manifold.

CAUTION: Plug the connections.

Disconnect fuel feed pipe from manifold.

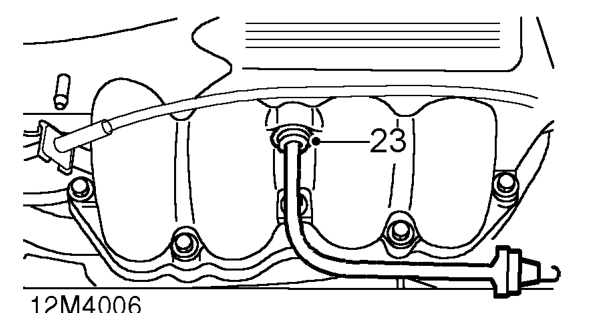

  1. Disconnect vacuum pipe from manifold.
Disconnect vacuum pipe from manifold.
