Land Rover Freelander Workshop Manual (1998-2000)05 · Engine - K Series
05 · Engine

Engine assembly - remove/refit - ’k’ series (page 2 of 4)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - K SeriesEngine assembly - remove/refit - ’k’ series · page 2 of 4
Diagram

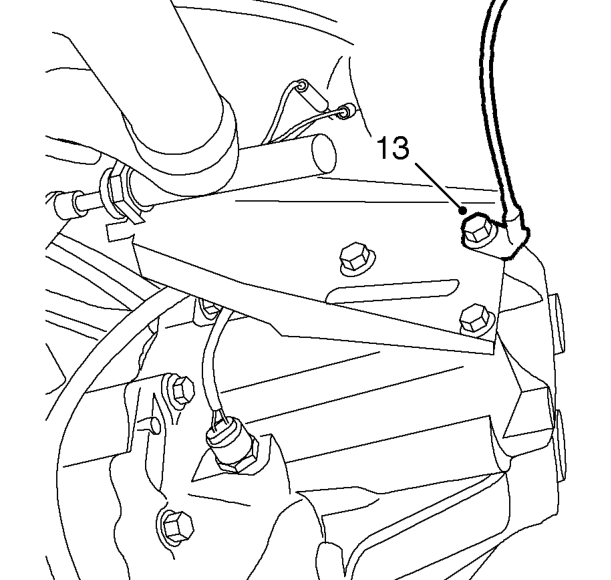

  1. Remove bolt securing engine earth lead to gearbox and position earth lead aside.
Remove bolt securing engine earth lead to gearbox and position earth lead aside.

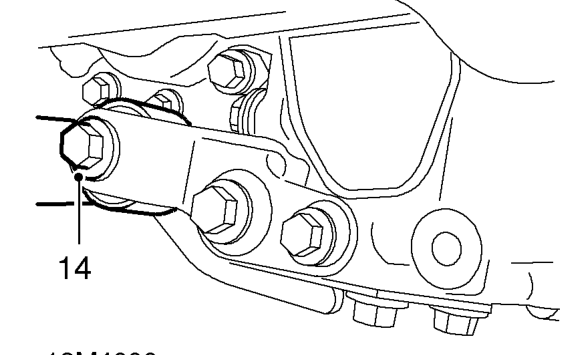

  1. Remove bolt securing engine lower tie rod to engine, loosen rear bolt and release tie rod.
  2. Remove battery carrier. See ELECTRICAL, Repairs.
Remove battery carrier. See ELECTRICAL, Repairs.

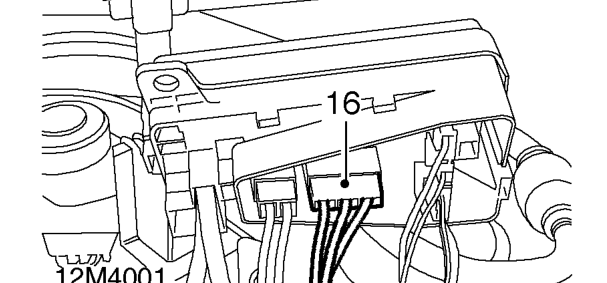

  1. Disconnect engine harness multiplug from fuse box.
Disconnect engine harness multiplug from fuse box.

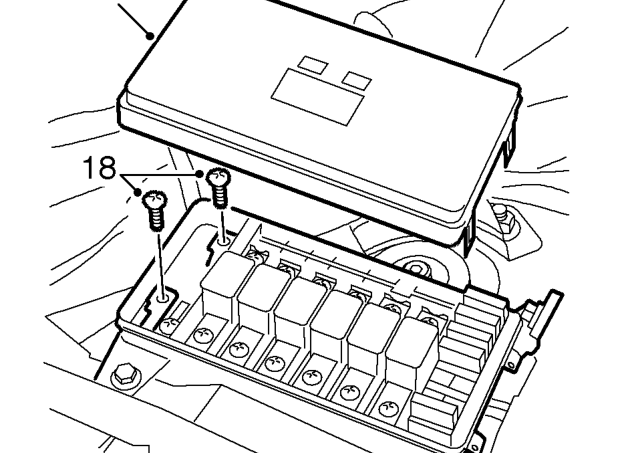

  1. Remove fuse box cover.
  2. Remove 2 screws securing positive leads and release positive leads from fuse box.
