COVER - TIMING BELT - FRONT LOWER

Service repair no - 12.65.43

Remove

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Exterior fittings.
  3. Remove starter motor. See ELECTRICAL, Repairs.

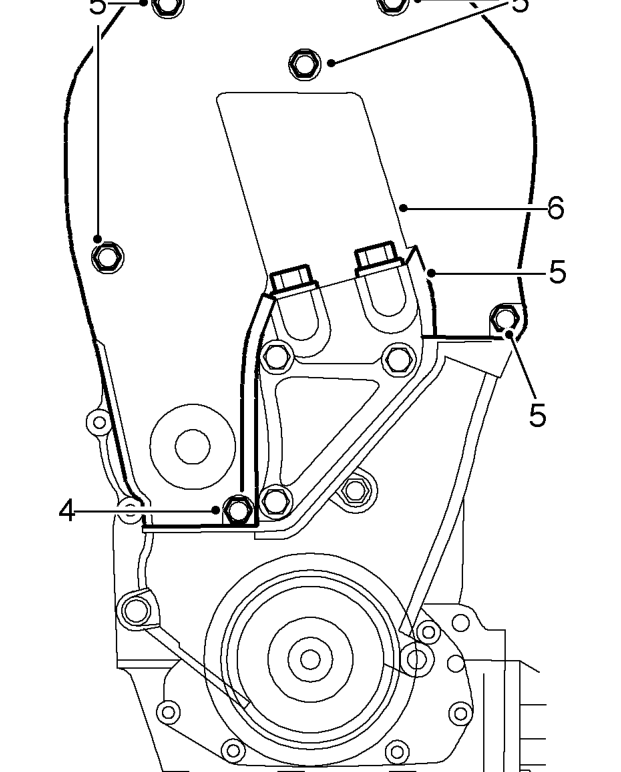

Cover - timing belt - front lower – Remove starter motor. See ELECTRICAL, Repairs.
  1. Loosen lower bolt securing camshaft timing belt top cover to engine.
  2. Remove 5 bolts securing camshaft timing belt top cover to rear cover.
  3. Remove camshaft timing belt top cover and rubber seal.

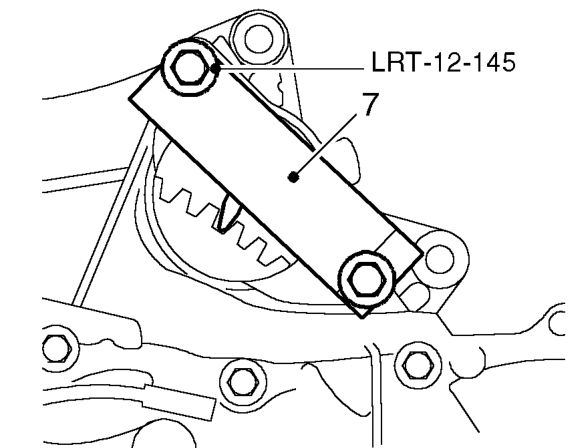

Cover - timing belt - front lower – Remove camshaft timing belt top cover and rubber seal.
  1. Fit flywheel locking tool LRT-12-145 to flywheel housing and secure with 2 bolts.
  2. Remove alternator drive belt. See ELECTRICAL, Repairs.

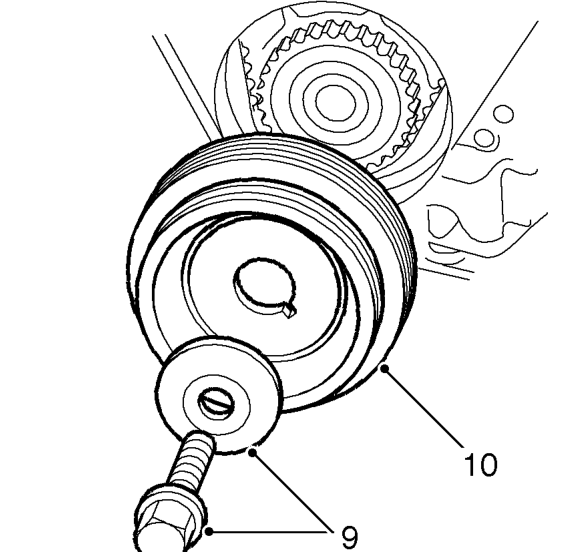

Cover - timing belt - front lower – Remove alternator drive belt. See ELECTRICAL, Repairs.
  1. Remove bolt securing pulley to crankshaft and collect washer.
  2. Remove crankshaft pulley.
