Cover - timing belt - front lower (page 2 of 2)

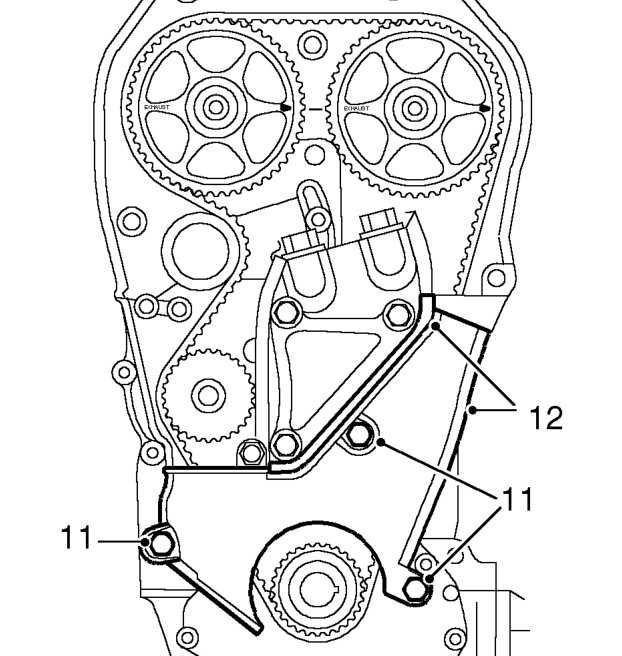

11. Remove 3 bolts securing camshaft timing belt lower cover to engine.
12. Remove camshaft timing belt lower cover and rubber seal.

Refit

1. Clean crankshaft pulley.
2. Clean timing belt lower cover.
3. Fit timing belt lower cover ensuring correct position of rubber seal.
4. Fit bolts securing timing belt lower cover to engine and tighten to 9 Nm .
5. Fit crankshaft pulley to crankshaft gear ensuring that indent on pulley locates over lug on gear.
6. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
7. Fit alternator drive belt. See ELECTRICAL, Repairs.
8. Remove 2 bolts securing tool LRT-12-145 to flywheel housing and remove tool.
9. Position camshaft timing belt top cover ensuring correct position of rubber seal.
10. Fit 5 bolts securing camshaft timing top cover to rear cover and tighten to 5 Nm.
11. Tighten bolt securing camshaft timing belt top cover to engine, to 5 Nm.
12. Fit starter motor. See ELECTRICAL, Repairs.
13. Fit underbelly panel. See BODY, Exterior fittings.
