Valve stem oil seal - engine set (page 2 of 2)

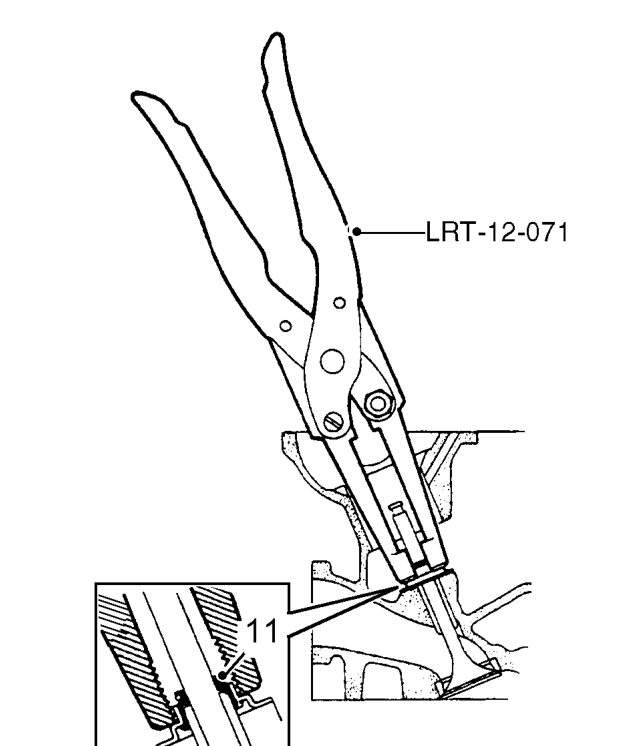

11. Use tool LRT-12-071 to remove valve stem oil seal.
12. Repeat operations to remove other valve oil seals.

Refit

1. Lubricate NEW valve stem oil seal with engine oil.
2. Use LRT-12-071 to fit oil seals.
3. Fit valve spring and spring cap to each valve.

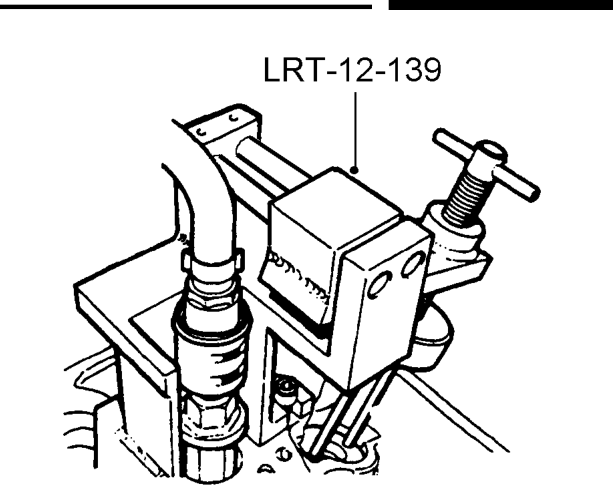

4. Assemble tool LRT-12-139 over exhaust valve.
5. Locate valve spring cap with compressor tool LRT-12-139
6. Screw down valve spring compressor until valve stem collet groove is level with top face of spring cap.
7. Attach collets to end of a small flat screwdriver with grease and locate collets in valve stem groove.
8. Unscrew valve spring compressor ensuring collets are correctly located in valve spring cap.
9. Slide head of LRT-12-139 along to second exhaust valve position.
10. Repeat refit operations on second valve.
11. Remove LRT-12-139.
12. Lubricate tappets with clean engine oil and refit in original positions.
13. Disconnect air line from LRT-12-142.
14. Remove LRT-12-142.
15. Clean spark plugs and set gaps to 0.85mm.
16. Fit inlet and exhaust camshafts. See ’K’ Series Engine Overhaul Manual - Overhaul.
17. Connect battery earth lead.
