Land Rover Freelander Workshop Manual (1998-2000)05 · Engine - K Series
05 · Engine

All engines (page 2 of 5)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Engine - K SeriesAll engines · page 2 of 5

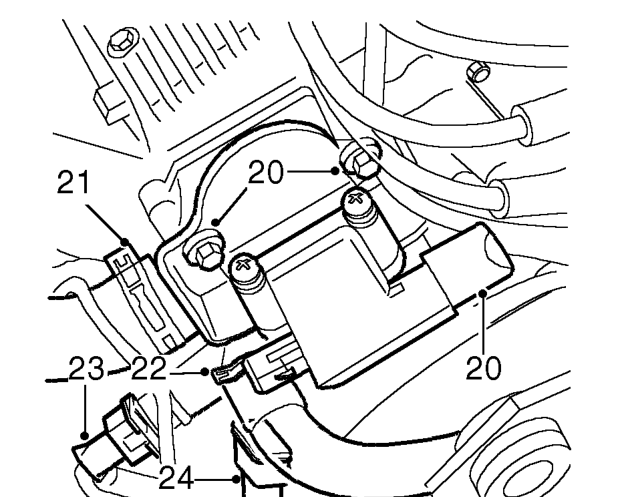

Diagram
  1. Remove 2 bolts securing coil bracket to cylinder head, disconnect coil HT lead and position coil aside.
  2. Release clip and disconnect radiator top hose from coolant outlet elbow.
  3. Release clip and disconnect coolant hose from coolant outlet elbow.
  4. Disconnect multiplug from engine coolant temperature sensor.
  5. Disconnect multiplug from engine coolant temperature gauge sensor.

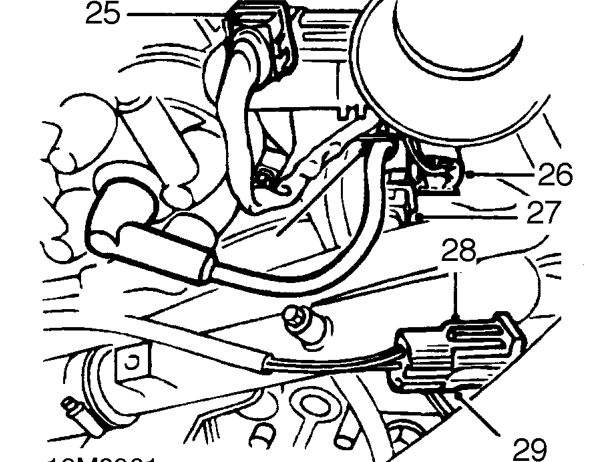

Disconnect multiplug from engine coolant temperature gauge sensor.
  1. Disconnect multiplug from throttle position sensor.
  2. Disconnect multiplug from injector harness.
  3. Disconnect multiplug from intake air temperature sensor.
  4. Disconnect heated oxygen sensor multiplug from engine harness.
  5. Release heated oxygen sensor multiplug from clip on bracket.

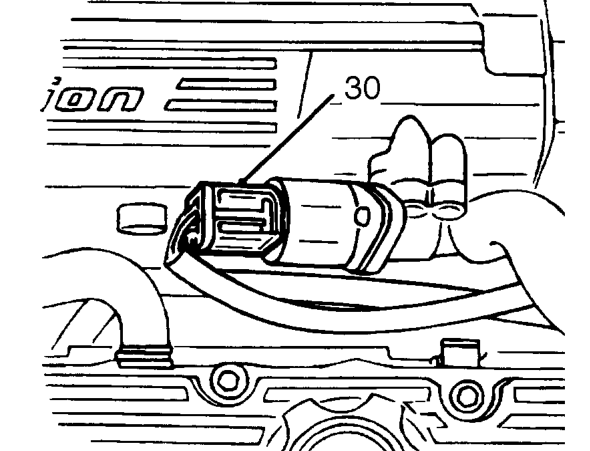

Release heated oxygen sensor multiplug from clip on bracket.
  1. Disconnect multiplug from idle air control valve.
