SEATS
76-5-4
REPAIRS

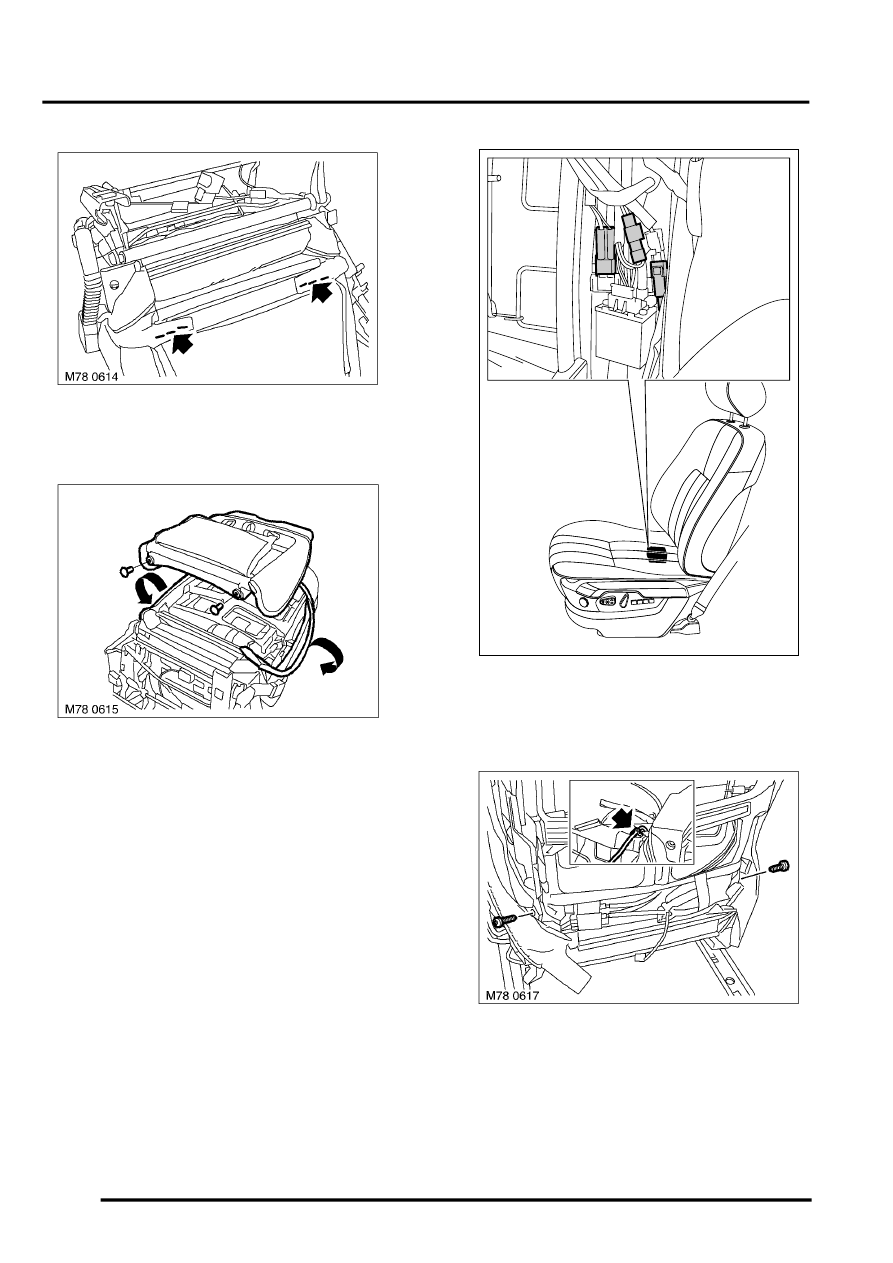

7. Release staples securing squab cover to lower
backboard.
8. Release squab side cover from both sides of
backboard.
9. Release 2 studs securing lower half of
backboard.
10. Release backboard from seat.
11. Disconnect lumbar harness multiplugs from
pump and valve.
12. Disconnect multiplug from heated seat circuit.
13. Release harness from retaining clip and feed
through squab cover.
14. Remove 2 Torx bolts and remove squab frame
from seat frame.
M78 0616
