L322 Range Rover Service Procedures
SEATS
REPAIRS
76-5-5

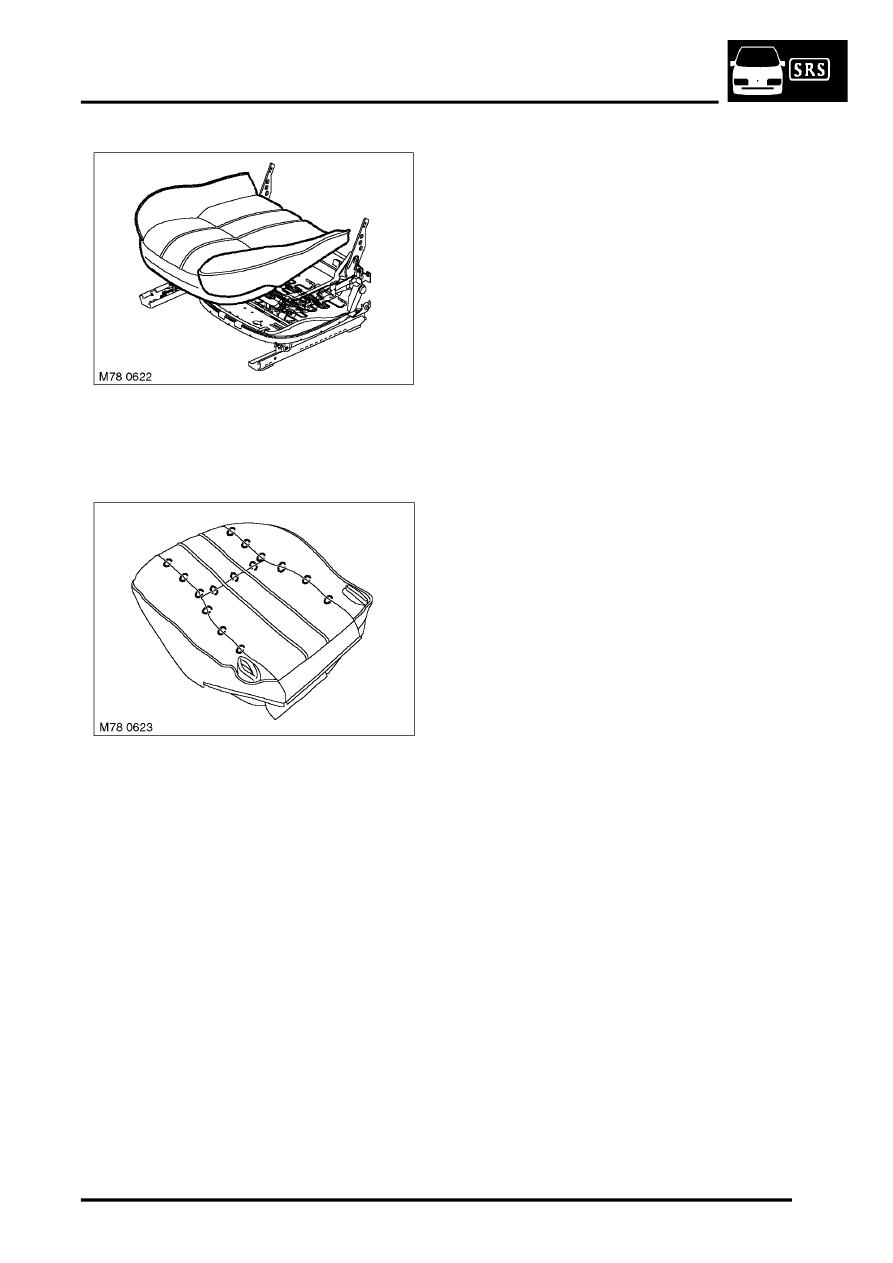

15. Release seat cover beading from rear of frame.
16. Release seat cover beading from sides and
front of frame.
17. Remove seat cushion and cover assembly.
18. Remove 15 hog rings securing cover to
cushion, remove cover.
Refit
1. Position cover to cushion and secure with hog
rings.
2. Position and secure cover and cushion
assembly to frame.
3. Position squab frame to seat frame, fit Torx
bolts tighten to 25 Nm (18 lbf.ft).
4. Route lumbar harness through squab cover
and secure to frame.
5. Connect multiplug to heated seat circuit.
6. Connect lumbar harness multiplugs to pump
and valve.
7. Position backboard to seat assembly, fit studs
securing lower of backboard.
8. Position and fit both sides of squab cover to
backboard.
9. Position lower squab cover to backboard and
staple.
10. Fit backboard tension straps to under seat
retaining clips.
11. Fit switch pack assembly.
12. Position inner seat base finisher and secure
with screw.
13. Fit armrest to boss and secure with Allen bolt,
tighten to 25 Nm (18 lbf.ft).
14. Fit seat assembly.
