6. Clean area around sensor to prevent ingress of
dirt.

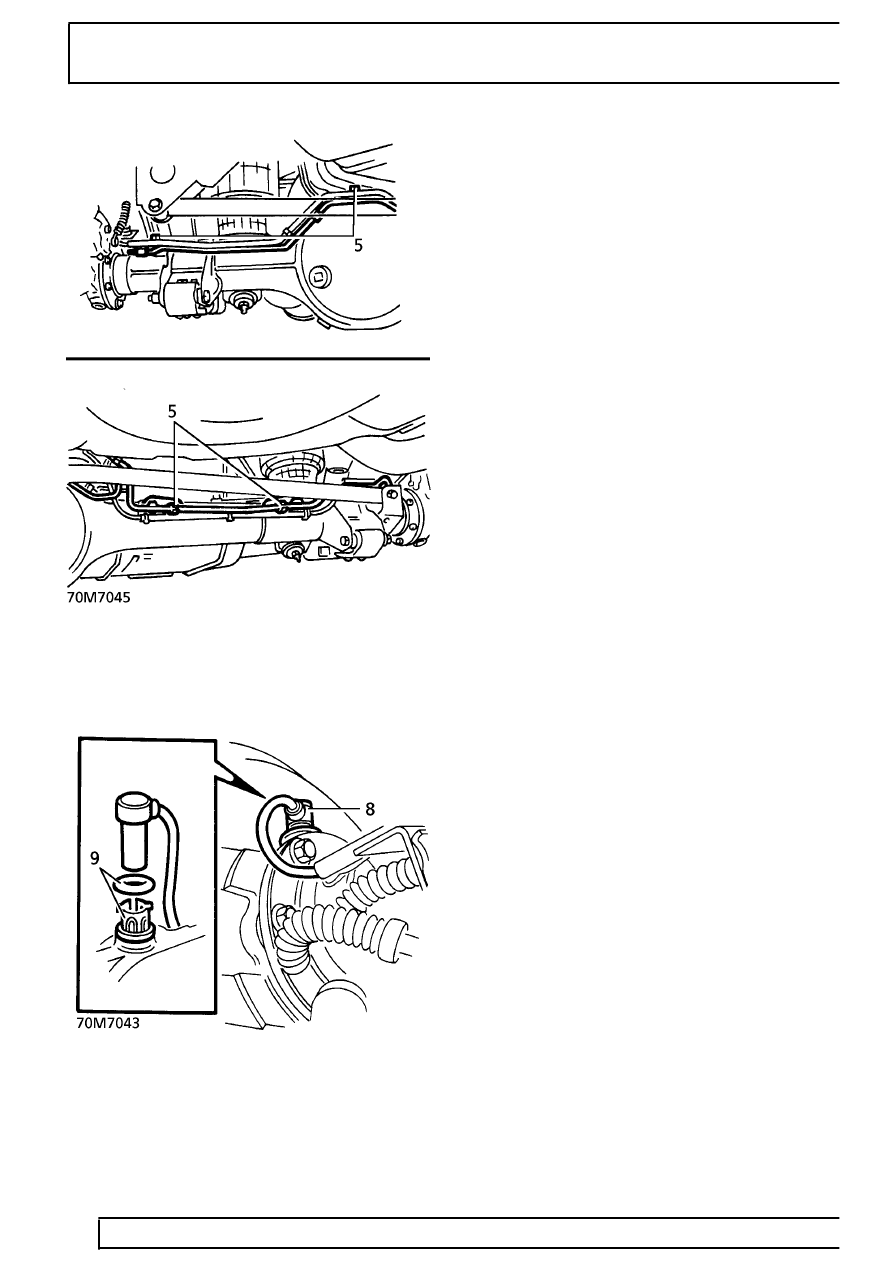

7. Using a suitable lever, prise sensor from bush.
8. Remove sensor/harness assembly.
9. Remove seal and bush.
10. Clean sensor location.
Refit
11. Lubricate new sensor bush with silicone grease.
See LUBRICANTS, FLUIDS AND
CAPACITIES, Information.
12. Fit sensor bush and seal.
13. Lubricate sensor with silicone grease.
14. Push sensor fully into bush until it contacts
reluctor ring. Correct sensor position will be
gained when vehicle is driven.
15. Position sensor harness guard. Secure with
bolts.
16. Engage sensor harness guard clips to brake
pipe.
17. Thread sensor harness through grommets.
Engage grommets in bracket.
18. Connect multiplug. Secure in clip.
19. Fit road wheel, tighten nuts to
108 Nm (80
lbf.ft).
20. Remove safety stands. Lower vehicle.
21. Clear ECU error code using TestBook .
22. Carry out short road test to ensure that ABS
warning light remains extinguished.
