Range Rover P38 Brakes - ABS Repair - Hydraulic Booster Unit (Page 1012)
70

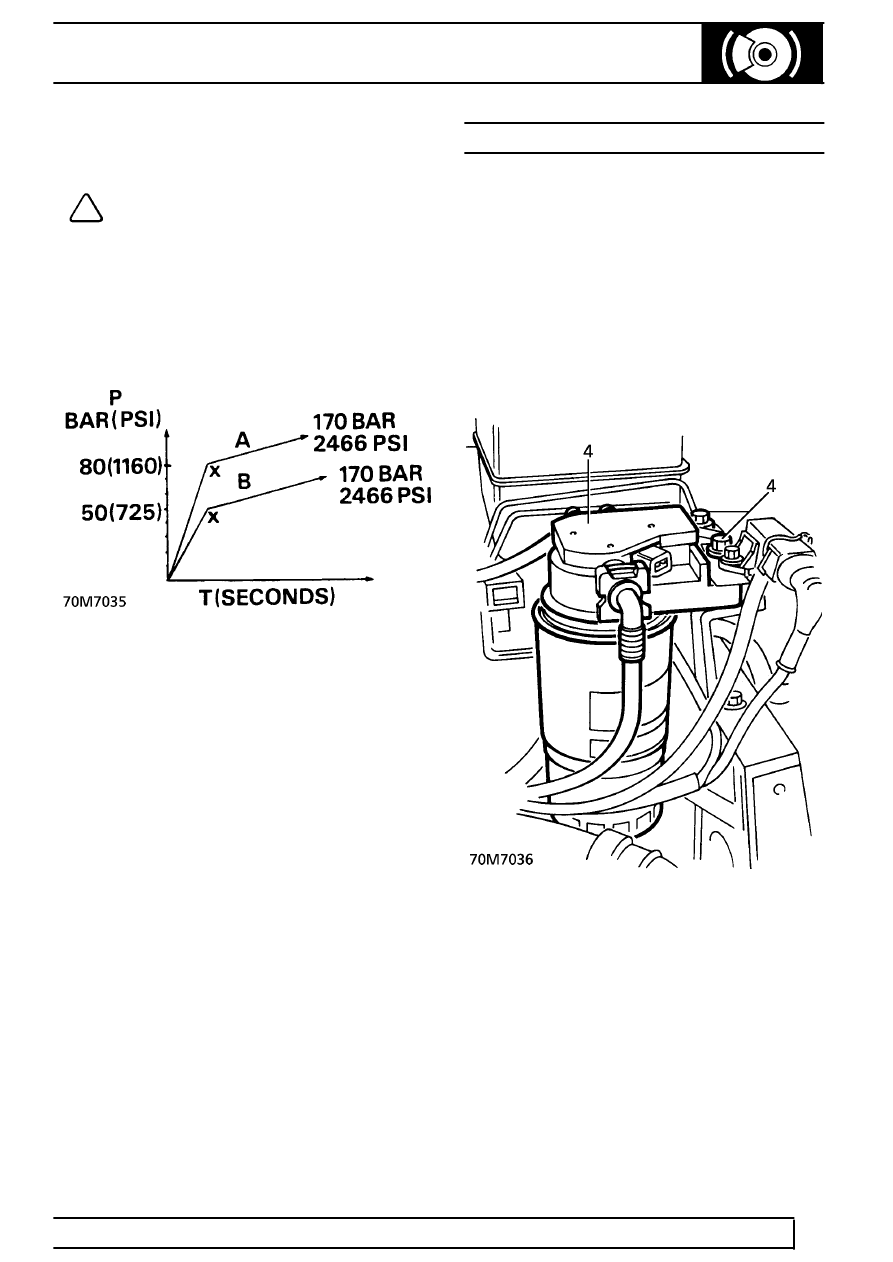

BRAKES
NEW RANGE ROVER
6
REPAIR
Manual Vehicles only.
9. Reposition container beneath clutch master
cylinder feed hose.
10. Disconnect clutch hose from reservoir. Allow
fluid to drain. Plug hose and reservoir.
All Models.
11. Disconnect 2 multiplugs from booster.
12. Disconnect fluid level switch multiplug.
13. Remove banjo bolt securing high pressure hose
to pump. Discard sealing washers. Plug hose
and pump.
14. Unscrew pipe unions from booster. Plug pipes
and booster.
15. Remove closing panel.
See CHASSIS AND
BODY, Repair. Remove stop light switch. See
this section.
16. Release booster push rod from brake pedal.
17. Remove 2 bolts securing booster assembly to
pedal box. Remove booster.
18. Remove banjo bolt securing high pressure hose
to booster. Discard sealing washers. Plug hose
and booster.
