AIR CLEANER - MGF TROPHY

Service repair no - 19.10.01

Remove

  1. Remove air cleaner element. See this section.

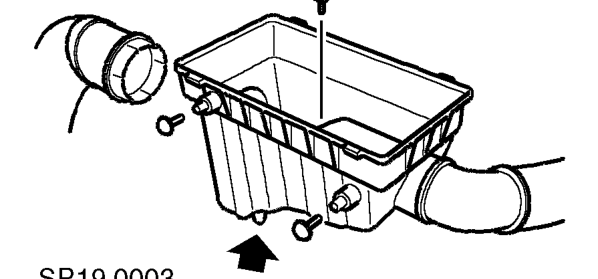

Air cleaner - mgf trophy – Remove air cleaner element. See this section.
  1. Remove 2 retaining studs securing air cleaner to support bracket.
  2. Release air cleaner from lower grommet.
  3. Release front air intake hose.
  4. Remove screw securing rear air intake hose.
  5. Release rear air intake hose and manoeuvre air cleaner from engine bay.

Refit

  1. Position air cleaner and align rear air intake hose.
  2. Fit and tighten screw securing rear air intake hose.
  3. Align and connect front air intake hose.
  4. Secure air cleaner in lower grommet.
  5. Align air cleaner to support bracket and fit retaining studs.
  6. Fit air cleaner element. See this section.

AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

  1. Remove engine compartment access panel. See BODY, Exterior fittings.

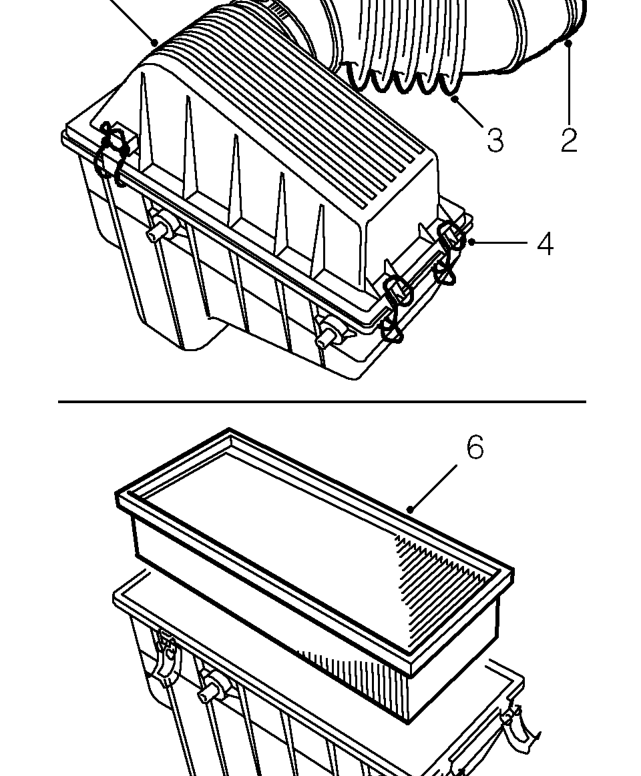

Air cleaner element – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Remove clip securing air intake hose to throttle body.
  2. Release hose from throttle body.
  3. Release 4 clips securing cover to air cleaner.
  4. Manoeuvre cover from air cleaner to gain sufficient access to element.
  5. Remove air cleaner element.
