THROTTLE CABLE

Service repair no - 19.20.06

Remove

  1. Remove engine cover. See ENGINE - ’K’ SERIES, Repairs.
  2. Remove engine compartment access panel. See BODY, Exterior fittings.
Throttle cable – Remove engine compartment access panel. See BODY, Exterior fittings.

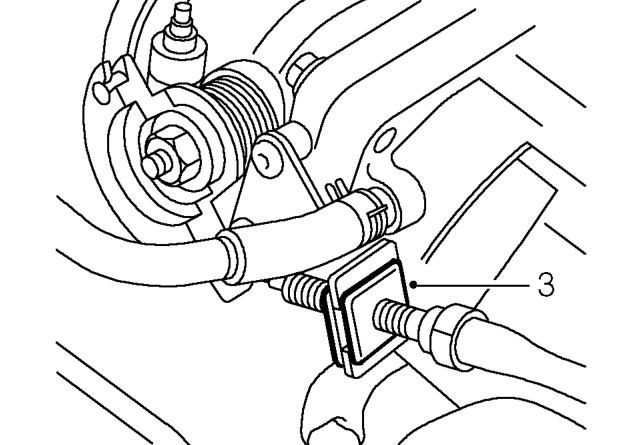

  1. Disconnect throttle cable abutment from throttle bracket.
Throttle cable – Disconnect throttle cable abutment from throttle bracket.

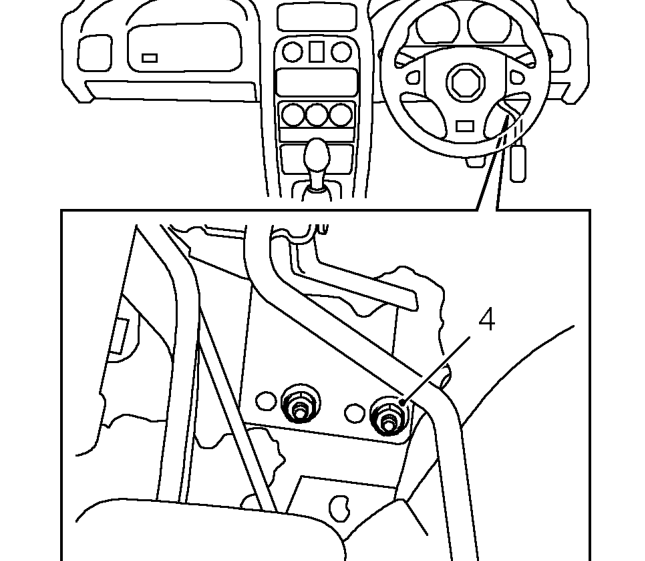

  1. Remove 2 nuts securing throttle pedal bracket to bulkhead.
Throttle cable – Remove 2 nuts securing throttle pedal bracket to bulkhead.

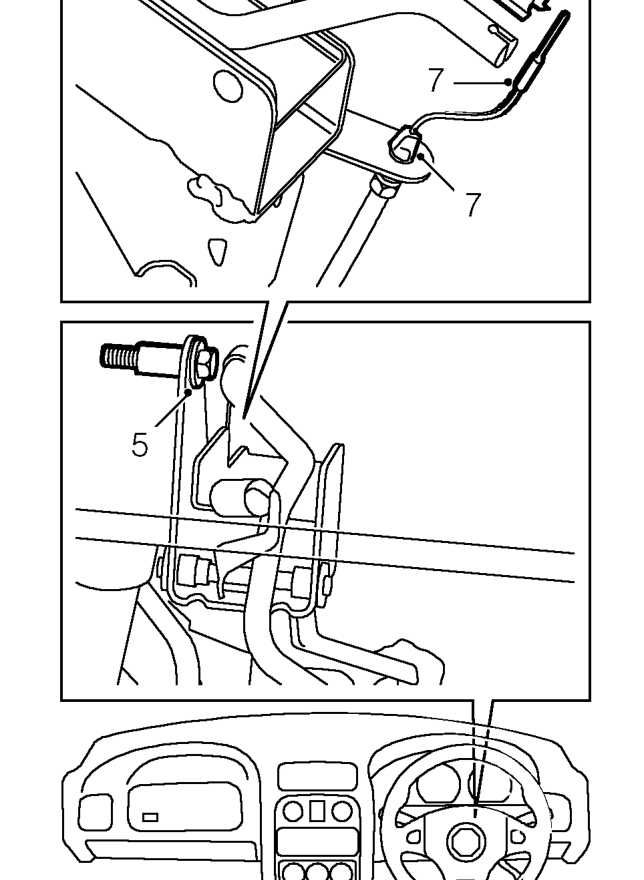

  1. Remove bolt securing throttle pedal bracket to pedal box and collect spacer.
  2. Position throttle pedal assembly and remove cable retaining clip.
  3. Release cable nipple and abutment from throttle pedal.
  4. Collect rubber washer.
