Sensor - camshaft position (cmp) - VVC

SENSOR - CAMSHAFT POSITION (CMP) - VVC

Service repair no - 18.30.24

Remove

1. Remove engine compartment access panel. See BODY, Exterior fittings.

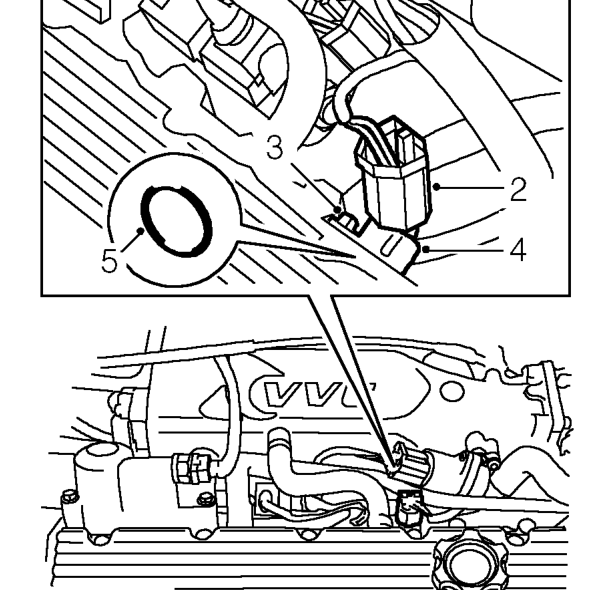

2. Disconnect multiplug from CMP sensor.
3. Remove bolt securing CMP sensor to cylinder head.
4. Remove CMP sensor.
5. Remove ’O’ ring seal from sensor.

Refit

1. Clean sealing faces of sensor and cylinder head.
2. Fit NEW ’O’ ring seal to CMP sensor.
3. Fit sensor to cylinder head and tighten bolt to 6 Nm.
4. Connect multiplug.
5. Fit engine compartment access panel. See BODY, Exterior fittings.

SENSOR - CAMSHAFT POSITION (CMP) - MPi MEMS3

Service repair no - 18.30.24

Remove

1. Remove engine cover. See ENGINE, Repairs.

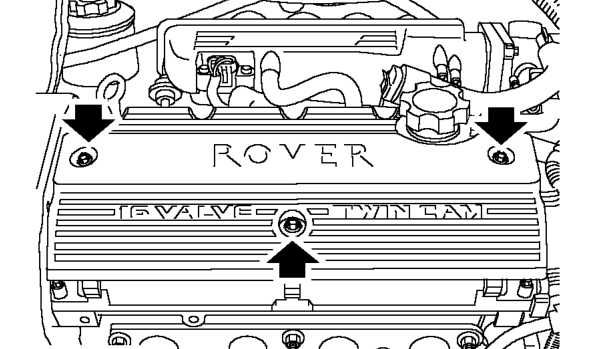

2. Remove three bolts securing coil cover to engine and remove coil cover.

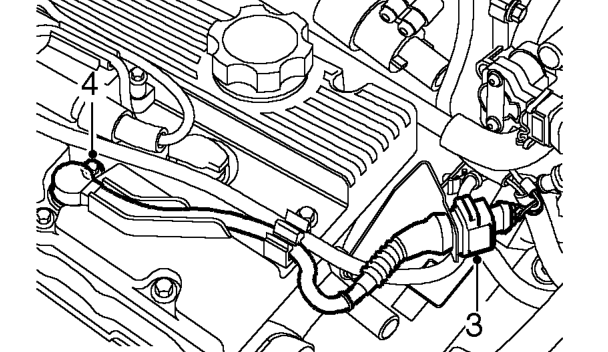

3. Release CMP multiplug from bracket and disconnect multiplug.
4. Release sensor cable from clip.
5. Remove bolt securing camshaft sensor and remove sensor.

Refit

1. Clean camshaft sensor and mating face.
2. Fit camshaft sensor, fit bolt and tighten to 6 Nm.
3. Connect CMP multiplug and secure in bracket.
4. Fit coil cover, fit bolts and tighten to 8 Nm.
5. Fit engine cover. See ENGINE, Repairs.
