FUEL INJECTORS - VVC

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
  2. Remove fuel rail. See this section.

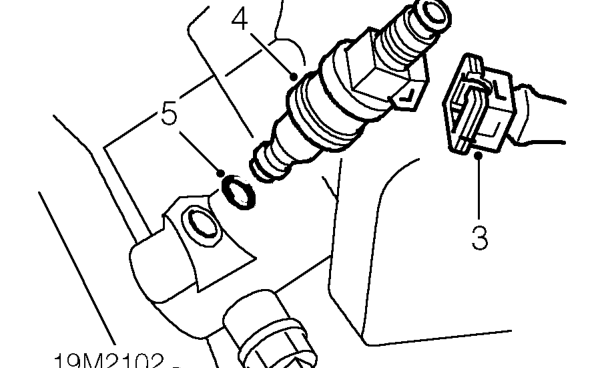

Fuel injectors - vvc – Remove fuel rail. See this section.
  1. Disconnect multiplugs from injectors.
  2. Remove injectors from inlet manifold.
  3. Remove and discard ’O’ rings from injectors.

Refit

  1. Lubricate new ’O’ rings with silicone grease and fit to injectors.
  2. Fit injectors to fuel rail and connect multiplugs.
  3. Fit fuel rail. See this section.
  4. Connect battery earth lead.

FUEL RAIL AND INJECTORS - MPi MEMS3 (2000MY ON)

Service repair no - 19.60.12 Service repair no - 19.60.04

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.

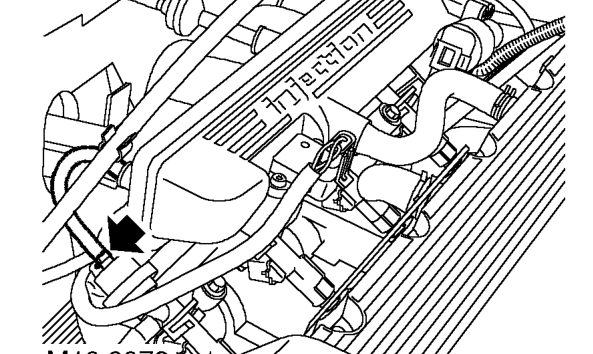

Fuel rail and injectors - mpi mems3 (2000my on) – Remove engine cover. See ENGINE, Repairs.
  1. Release clip and disconnect vacuum pipe from fuel pressure regulator.
  2. Position absorbent cloth beneath fuel rail.

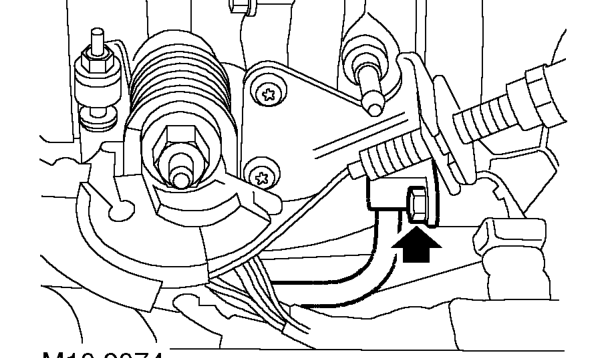

Fuel rail and injectors - mpi mems3 (2000my on) – Position absorbent cloth beneath fuel rail.
  1. Remove 2 bolts securing fuel pipe to fuel rail.
  2. Release fuel pipe from fuel rail, remove and discard ’O’ ring.

CAUTION: Plug connections.
