Engine management system - MEMSFuel pump (up to 2001my)

FUEL PUMP (UP TO 2001MY)

Service repair no - 19.45.08

Remove

  1. Disconnect battery earth lead.
  2. Depressurise fuel system. See Adjustments.
  3. Remove engine cover. See ENGINE - ’K’ SERIES, Repairs.

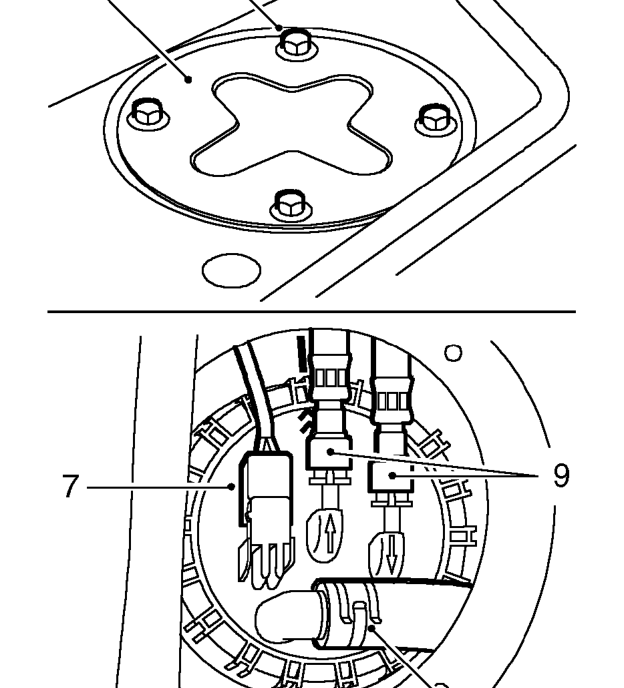

Fuel pump (up to 2001my) – Remove engine cover. See ENGINE - ’K’ SERIES, Repairs.
  1. Remove 4 bolts securing fuel pump cover.
  2. Remove fuel pump cover.
  3. Release clip and hose securing breather hose to fuel pump.
  4. Disconnect fuel pump multiplug.
  5. Position absorbent cloth around fuel hoses to collect any fuel spillage.
  6. Noting their fitted positions, release fuel feed hose (orange connector) and fuel return hose (green connector) from fuel pump.
Fuel pump (up to 2001my) – Noting their fitted positions, release fuel feed hose (orange connector) and fuel return h

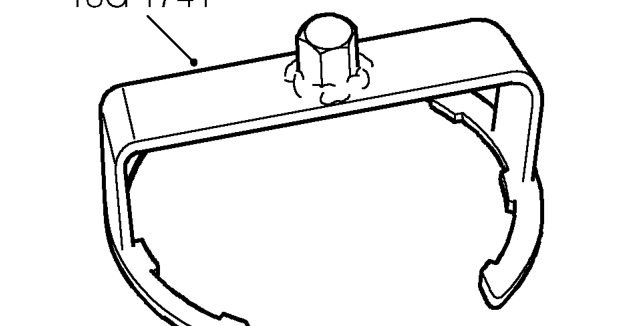

  1. Using tool 18G 1741, loosen fuel pump to tank retaining ring.
  2. Remove tool.
  3. Remove fuel pump retaining ring.
  4. Remove fuel pump from tank.

CAUTION: Do not insert a lever between the fuel tank and fuel pump, as damage to the sealing surface of the fuel tank may occur.

  1. Remove sealing ring from fuel tank and discard.
  2. Remove absorbent cloth.
