Fuel tank

Refit

1. Lubricate new ’O’ rings with silicone grease and fit to injectors.
2. Position fuel rail and fit to injectors.
3. Fit spring clips securing fuel rail to injectors.
4. Fit bolts securing fuel rail to inlet manifold and tighten to 10 Nm.
5. Connect fuel return pipe to fuel rail and secure with clip.
6. Remove plugs from fuel feed pipe and fuel rail.
7. Lubricate new ’O’ ring with silicone grease and fit to fuel feed pipe.
8. Connect fuel feed pipe to fuel rail and tighten bolts to 8 Nm.
9. Fit inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
10. Connect battery earth lead.

FUEL TANK

Service repair no - 19.55.01

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

1. Make the SRS system safe. See RESTRAINT SYSTEMS, Precautions.
2. Remove air cleaner. See this section.
3. Drain fuel tank. See Adjustments.

NOTE: Fuel vapour causes the fuel tank to swell, before attempting fuel tank removal ensure fuel is completely drained and the tank is left in the drained condition for at least 2 hours.

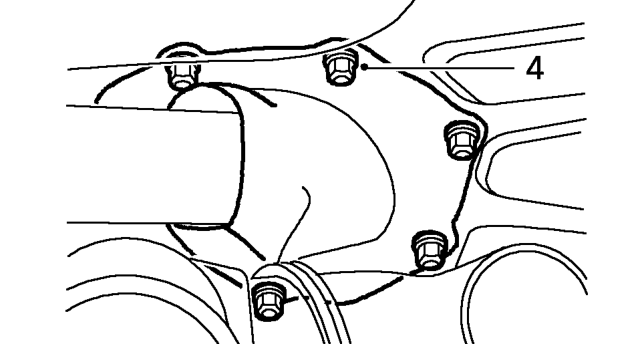

4. Remove 5 nuts securing fuel filler pipe gaiter to bulkhead.
5. Remove fuel filler cap.

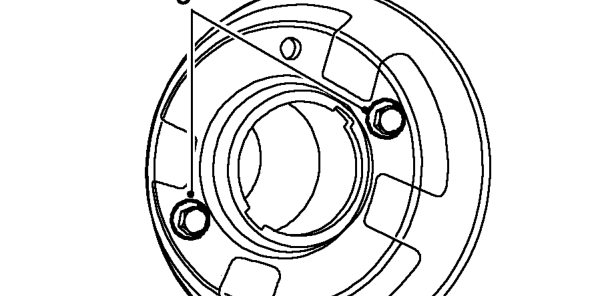

6. Loosen 2 bolts securing filler neck to rear wing.
