MG MGF Factory Workshop Manual (1995-2000)06 · Engine management system - MEMS
06 · Engine

Fuel tank (page 3 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Engine management system - MEMSFuel tank · page 3 of 3
Diagram

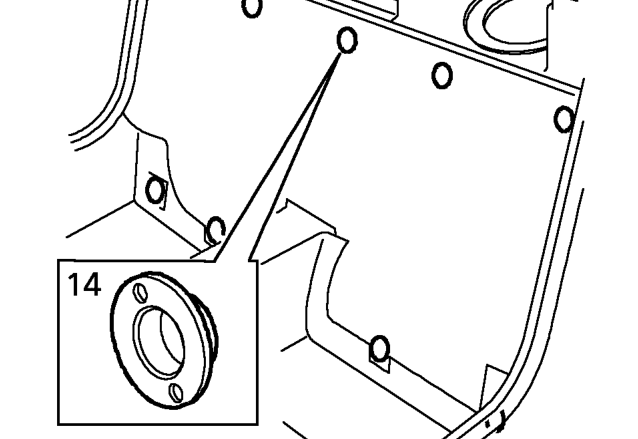

  1. Remove 9 retaining studs securing felt pad to rear bulkhead and remove pad.
Remove 9 retaining studs securing felt pad to rear bulkhead and remove pad.

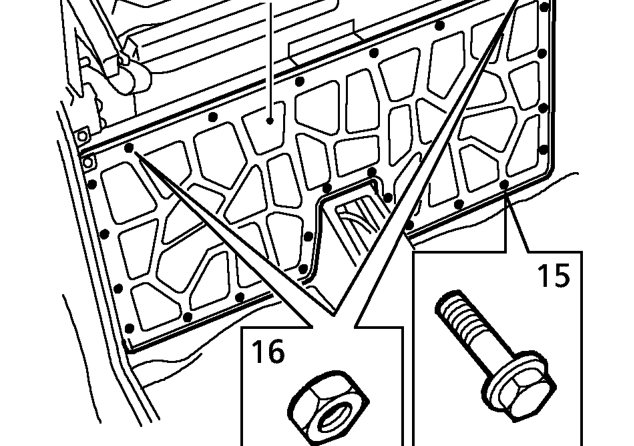

  1. Remove 22 bolts securing closing panel to rear bulkhead.
  2. Remove 2 nuts securing closing panel to rear bulkhead.
  3. Remove closing panel.
Remove closing panel.

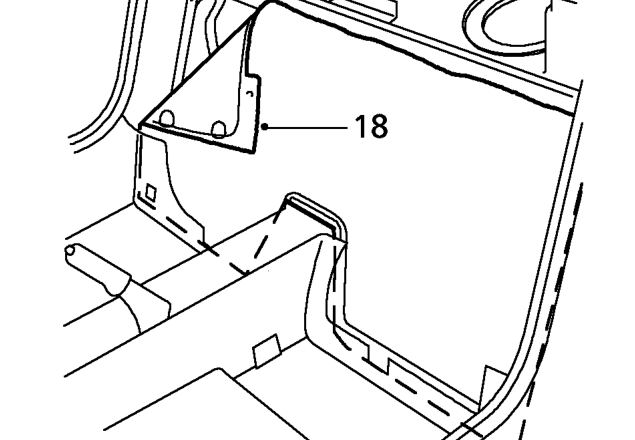

  1. Remove and discard plastic fuel tank sealing sheet.
Remove and discard plastic fuel tank sealing sheet.

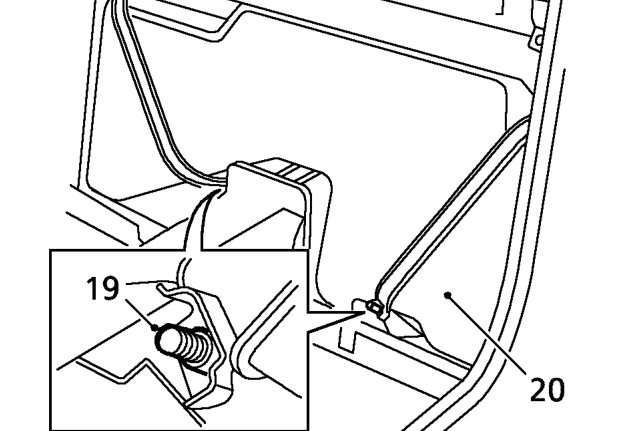

  1. Remove 2 nuts securing tank retaining straps to body and position aside.
  2. Remove fuel tank.
