Engine management system - MEMSSwitch - inertia fuel shut-off

SWITCH - INERTIA FUEL SHUT-OFF

Service repair no - 19.22.09

Remove

  1. Disconnect battery earth lead.
  2. Remove engine compartment access panel. See BODY, Exterior fittings.
Switch - inertia fuel shut-off – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Disconnect multiplug from switch.
  2. Remove 2 Torx screws securing switch to body.
  3. Remove switch.

Refit

  1. Fit switch and tighten screws.
  2. Connect multiplug to switch.
  3. To ensure switch is set in correct position, press down on top.
  4. Fit engine compartment access panel. See BODY, Exterior fittings.
  5. Connect battery earth lead.

SENSOR - INTAKE AIR TEMPERATURE (IAT) - MPi MEMS 1.9 (UP TO 2000MY) ; VVC MEMS 2J (UP TO 2001MY)

Service repair no - 18.30.09

Remove

  1. Disconnect battery earth lead.
  2. Remove engine compartment access panel. See BODY, Exterior fittings.

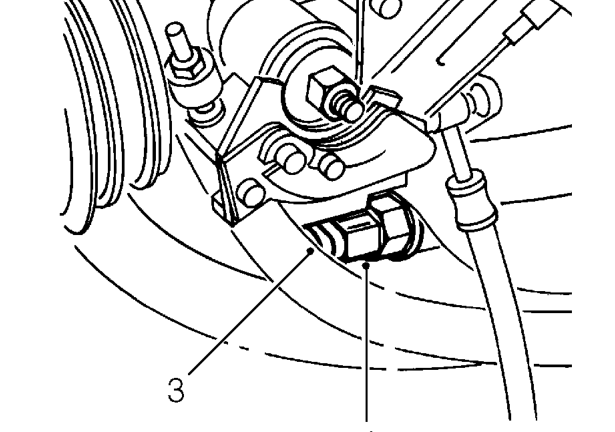

Sensor - intake air temperature (iat) - mpi mems 1.9 (up to 2000my) ; vvc mems 2j (up to 2001my) – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Disconnect multiplug from IAT sensor.
  2. Remove IAT sensor from inlet manifold.

Refit

  1. Clean sensor threads and mating face.
  2. Fit IAT sensor to inlet manifold and tighten to 7 Nm.
  3. Connect multiplug to IAT sensor.
  4. Fit engine compartment access panel. See BODY, Exterior fittings.
  5. Connect battery earth lead.
