FUEL RAIL - VVC

Service repair no - 19.60.04

Remove

  1. Disconnect battery earth lead.
  2. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  3. Position absorbent cloth around fuel filter outlet union. Slacken union to relieve fuel pressure. Retighten union to 30 Nm.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.

Fuel rail - vvc – Position absorbent cloth around fuel filter outlet union. Slacken union to relieve fuel pr

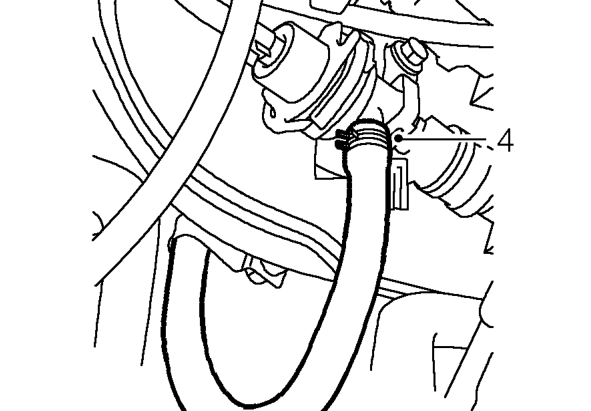

  1. Release clip and release fuel return pipe from fuel rail.
Fuel rail - vvc – Release clip and release fuel return pipe from fuel rail.

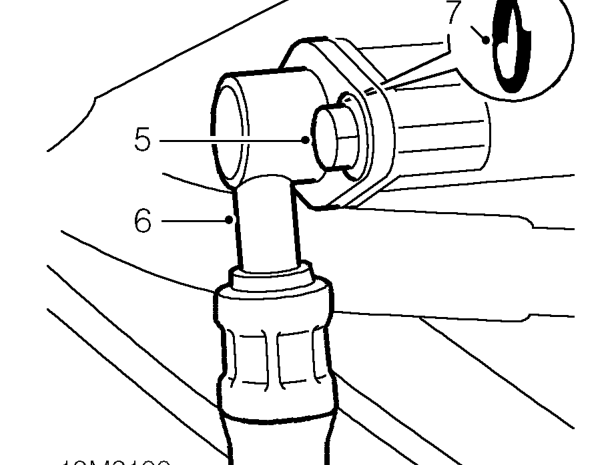

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail.
  3. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

Fuel rail - vvc – Remove and discard ’O’ ring.

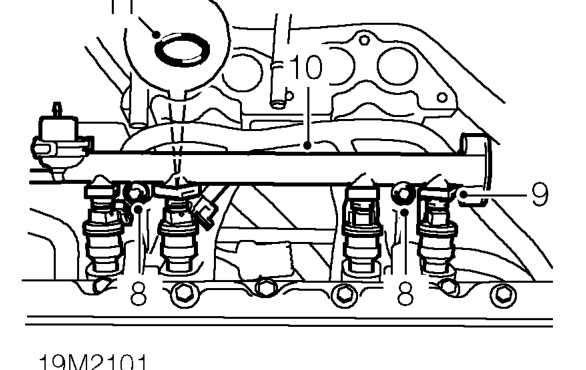

  1. Remove 2 bolts securing fuel rail to inlet manifold.
  2. Remove spring clips securing injectors to fuel rail.
  3. Release fuel rail from injectors and remove.
  4. Remove and discard ’O’ rings from injectors.
