Hose - breather - tank to filler neck

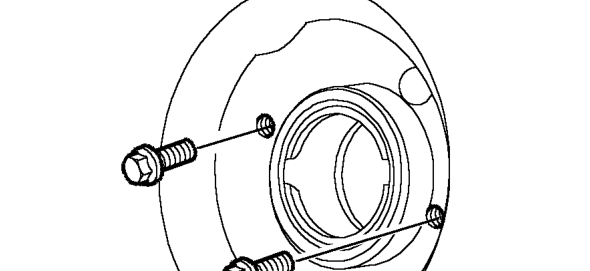

15. Remove 2 bolts securing filler neck to body and remove filler neck.

Refit

1. Position filler neck, fit and tighten 2 bolts securing neck to body.
2. Connect tank hose to filler neck and secure with clip.
3. Connect breather hose to filler neck and secure with clip.
4. Manoeuvre gaiter into position, fit clamping plate and secure with nuts.
5. Fit and tighten 2 bolts securing resonator to body to 8 Nm.
6. Fit air intake elbow to resonator.
7. Connect air intake hose to resonator and secure with clip.
8. Position air cleaner support bracket, fit and tighten bolts.
9. Connect cables to clips.
10. Fit fuel filter to support bracket and secure with nuts.
11. Refill fuel tank. See Adjustments.
12. Fit fuel cap.
13. Fit air cleaner. See this section.
14. Connect battery earth lead.

HOSE - BREATHER - TANK TO FILLER NECK

Service repair no - 19.55.14

Remove

1. Disconnect battery earth lead.
2. If fitted, remove subwoofer assembly. See ELECTRICAL, Repairs.
3. Remove hoodwell trim. See BODY, Interior trim components.
4. Remove engine cover. See ENGINE, Repairs.

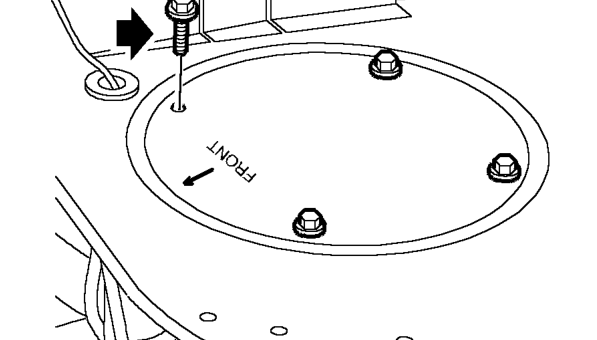

5. Remove 4 bolts securing fuel pump cover and remove cover.

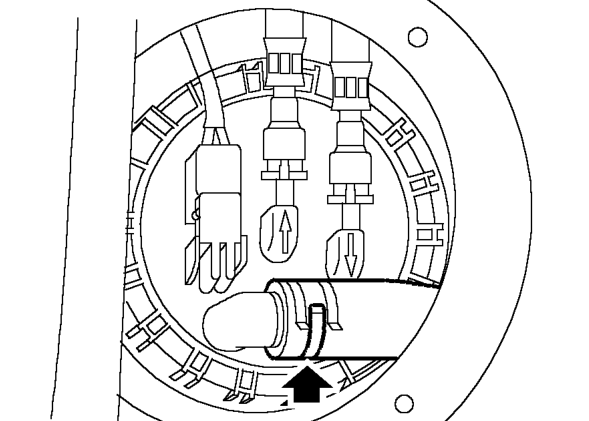

6. Release clip and disconnect breather hose from fuel pump.
