Throttle body

THROTTLE BODY

Service repair no - 19.22.45

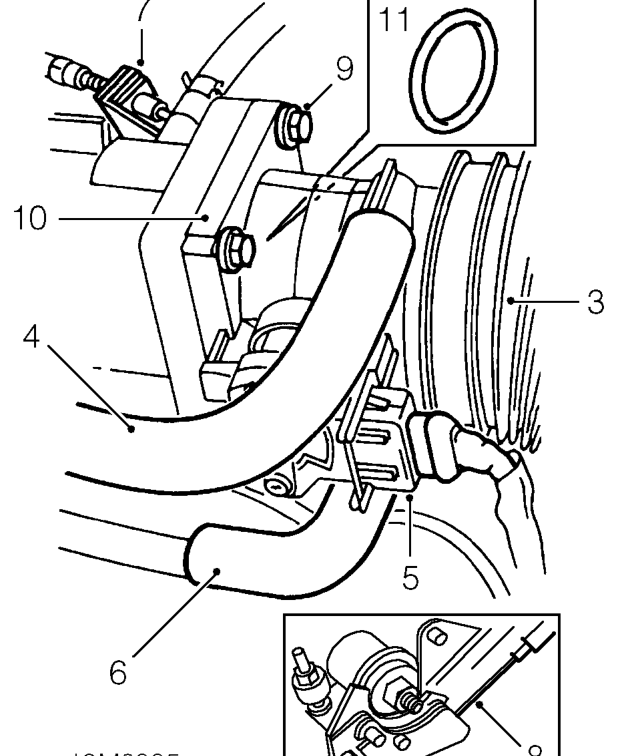

Remove

1. Disconnect battery earth lead.
2. Remove engine compartment access panel. See BODY, Exterior fittings.

3. Release clips and disconnect air hose from throttle body and air cleaner.
4. Disconnect Idle Air Control valve hose from throttle body.
5. Disconnect multiplug from throttle position sensor.
6. Release clip and disconnect breather hose from throttle body.
7. Release throttle cable adjusting nut from abutment bracket.
8. Release throttle cable from cam.
9. Remove 4 bolts securing throttle body to inlet manifold.
10. Remove throttle body and move multiplug mounting bracket aside.
11. Remove ’O’ ring and discard.

Refit

1. Clean mating surfaces of throttle body and inlet manifold.
2. Lubricate NEW ’O’ ring with silicone grease and fit to throttle body.
3. Position throttle body and multiplug bracket, fit bolts and tighten to 7 Nm.
4. Position throttle cable to cam.
5. Locate throttle cable adjusting nut in abutment bracket.
6. Connect breather hose to throttle body. and secure clip.
7. Connect multiplug to throttle position sensor.
8. Connect Idle Air Control valve to throttle body.
9. Connect air hose to throttle body and air cleaner and secure clips.
10. Fit engine compartment access panel. See BODY, Exterior fittings.
11. Connect battery earth lead.
12. Adjust throttle cable. See Adjustments.
