Engine management system - MEMSSensor - oil temperature - VVC

SENSOR - OIL TEMPERATURE - VVC

Service repair no - 18.30.41

Remove

  1. Remove engine compartment access panel. See BODY, Exterior fittings.

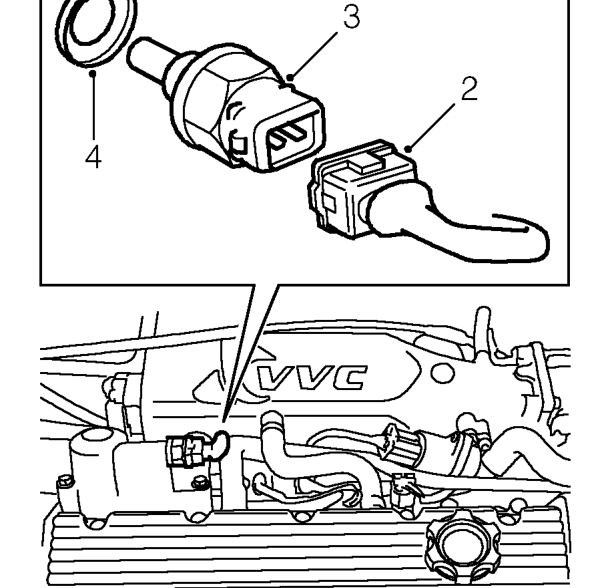

Sensor - oil temperature - vvc – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Disconnect multiplug from oil temperature sensor.
  2. Remove temperature sensor from hydraulic control unit.
  3. Remove and discard seal.

Refit

  1. Clean sealing faces of sensor and hydraulic control unit.
  2. Fit seal to sensor.
  3. Fit sensor and tighten to 15 Nm.
  4. Connect multiplug.
  5. Fit engine compartment access panel. See BODY, Exterior fittings.

SENSOR - OXYGEN (H02S) (UP TO 2001MY)

Service repair no - 19.22.16

Remove

  1. Remove engine cover. See ENGINE, Repairs.

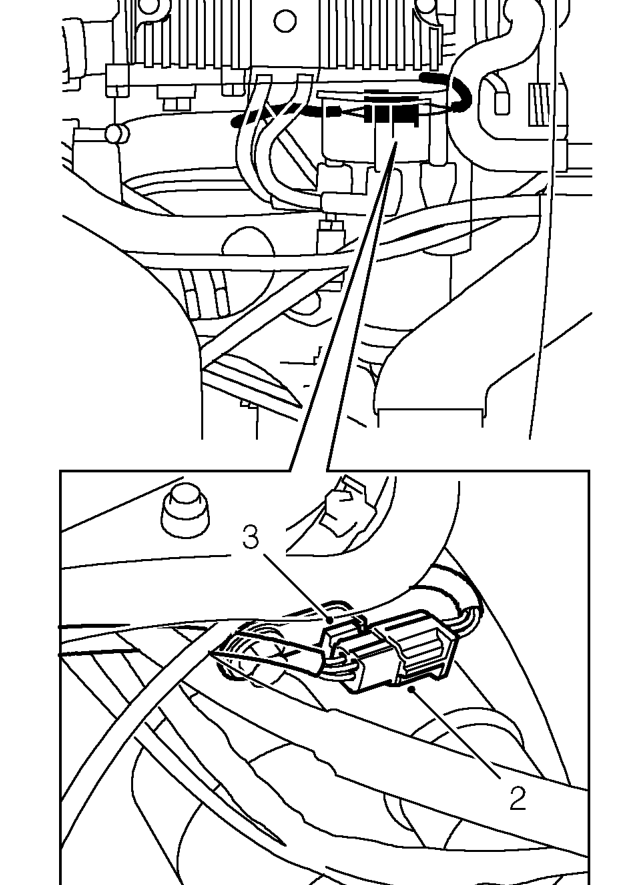

Sensor - oxygen (h02s) (up to 2001my) – Remove engine cover. See ENGINE, Repairs.
  1. Disconnect HO2S multiplug.
  2. Release multiplug from bracket.
