Air intake resonator - up to 2001my

Refit

1. Clean inside of air cleaner.
2. Fit air cleaner element.
3. Fit air cleaner cover and secure clips.
4. Fit air intake hose to air cleaner and secure with clip.
5. Fit air intake hose to throttle body and secure with clip.
6. Fit engine compartment access cover. See BODY, Exterior fittings.
7. Fit engine cover. See ENGINE, Repairs.
8. Connect battery earth lead.

AIR INTAKE RESONATOR - UP TO 2001MY

Service repair no - 19.70.03

Remove

1. Remove air cleaner. See this section.
2. Remove engine compartment access panel. See BODY, Exterior fittings.
3. Loosen clip securing air intake pipe to resonator.
4. Disconnect pipe from resonator.
5. Raise rear of vehicle.

WARNING: Support on safety stands.

6. Remove LH rear road wheel.

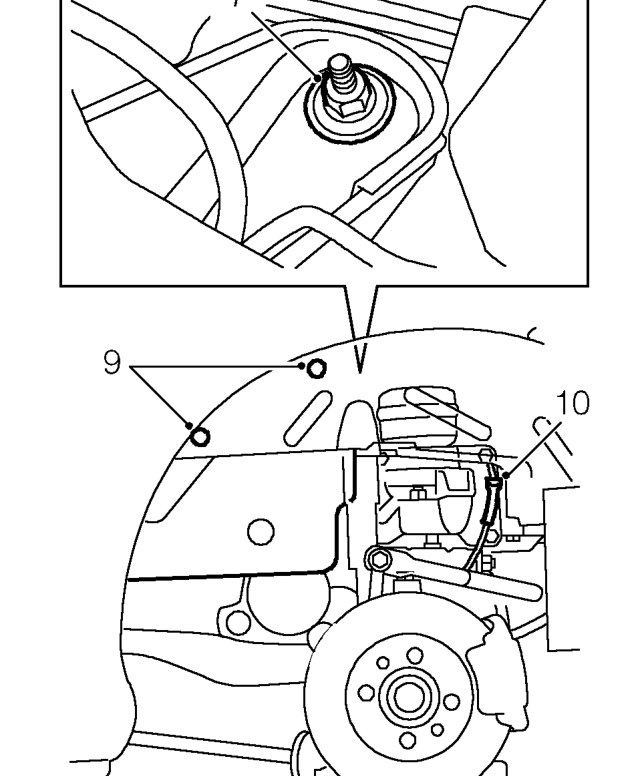

7. Remove nut securing top of damper to body.
8. Remove rear anti-roll bar. See FRONT SUSPENSION, Repairs.
9. Remove 2 bolts securing resonator to inner wheel arch.
10. Release ABS sensor lead from Hydragas unit bracket.
11. Support LH side of body with jack.
