MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Front anti-roll bar bushes

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Front anti-roll bar bushes
SuspensionFront anti-roll bar bushes

FRONT ANTI-ROLL BAR BUSHES

Service repair no - 68.10.06

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

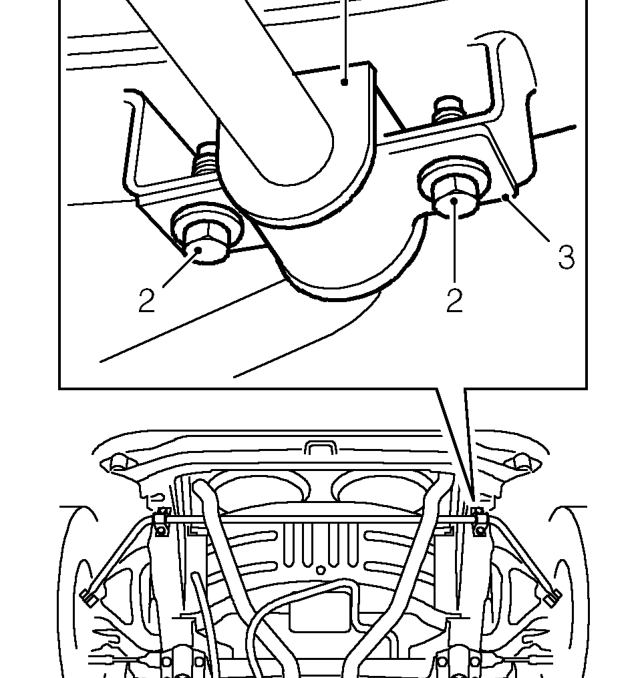

Front anti-roll bar bushes – Raise front of vehicle.
  1. Remove 2 bolts securing each anti-roll bar bush, clamp to subframe.
  2. Remove 2 clamps.
  3. Remove 2 bushes.

Refit

  1. Clean anti-roll bar.
  2. Fit bushes and align clamps to bolt holes.
  3. Fit bolts to each anti-roll bar clamp and tighten to 22 Nm.
  4. Remove stand(s) and lower vehicle.

REAR ANTI-ROLL BAR BUSHES

Service repair no - 68.10.07

Remove

  1. Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

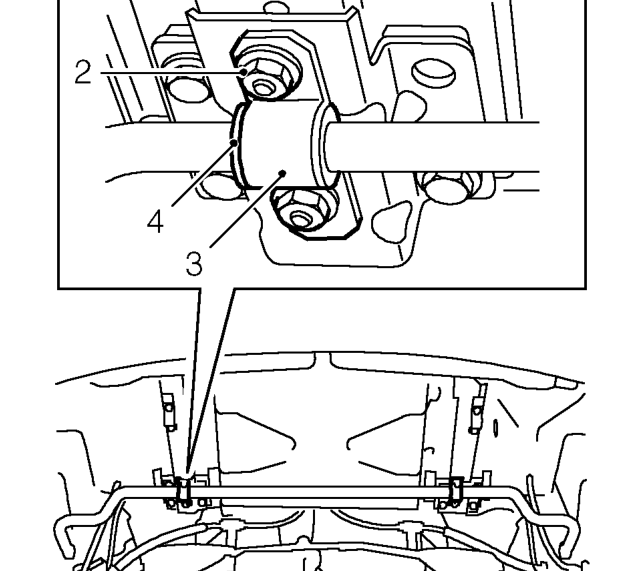

Rear anti-roll bar bushes – Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Remove 2 nuts securing each anti-roll bar bush, clamp to subframe.
  2. Remove 2 clamps.
  3. Remove 2 bushes.

Refit

  1. Clean anti-roll bar.
  2. Fit bushes and align clamps to bolt holes.
  3. Fit nuts to each anti-roll bar clamp and tighten to 22 Nm.
  4. Fit silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
