UPPER ARM - REAR

Service repair no - 68.35.31

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Depressurise one side of hydragas system. See Adjustments.

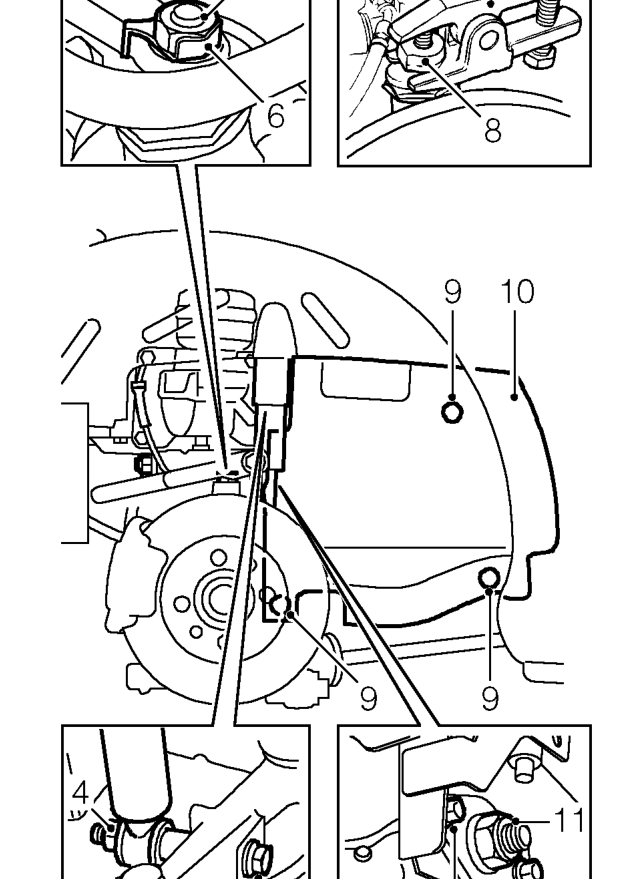

Upper arm - rear – Depressurise one side of hydragas system. See Adjustments.
  1. Remove nut and bolt securing damper to upper arm.
  2. Release damper from upper arm.
  3. Bend tab washer from ball joint nut.
  4. Remove ball joint nut.
  5. Break ball joint using tool 18G 1584.
  6. Remove 2 scrivets and Torx screw securing closing panel.
  7. Remove closing panel.
  8. Remove nut securing RH end of upper arm, pivot shaft.
  9. Remove 2 bolts securing pivot shaft retaining plate.

NOTE: Inner bolt has captive nut.
