MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Upper arm bearings - rear

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Upper arm bearings - rear
SuspensionUpper arm bearings - rear

UPPER ARM BEARINGS - REAR

Service repair no - 68.35.29

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove upper arm. See this section.
Upper arm bearings - rear – Remove upper arm. See this section.
  1. Place upper arm in vice.

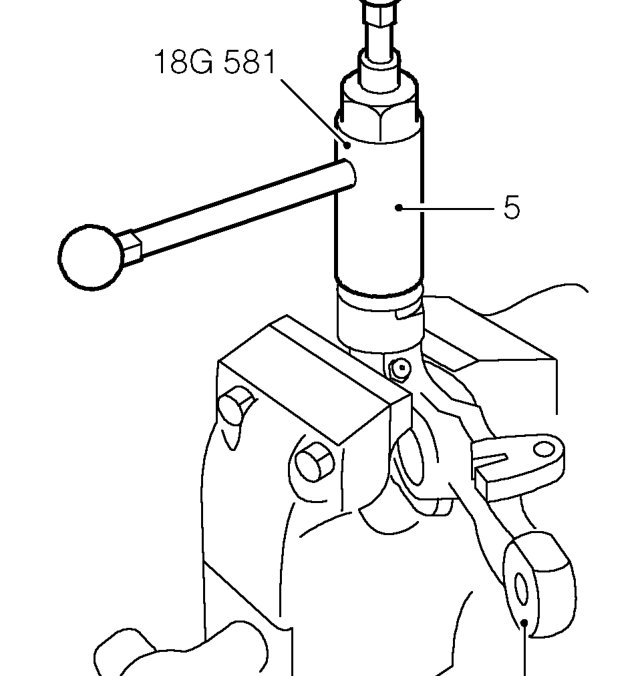

  2. Remove needle roller bearings using tool 18G 581 .

CAUTION: Inspect and clean bearing housings prior to reassembly. If any wear or damage is present due to worn bearings, the arm must be renewed.

Refit

Upper arm bearings - rear – Remove needle roller bearings using tool 18G 581 .

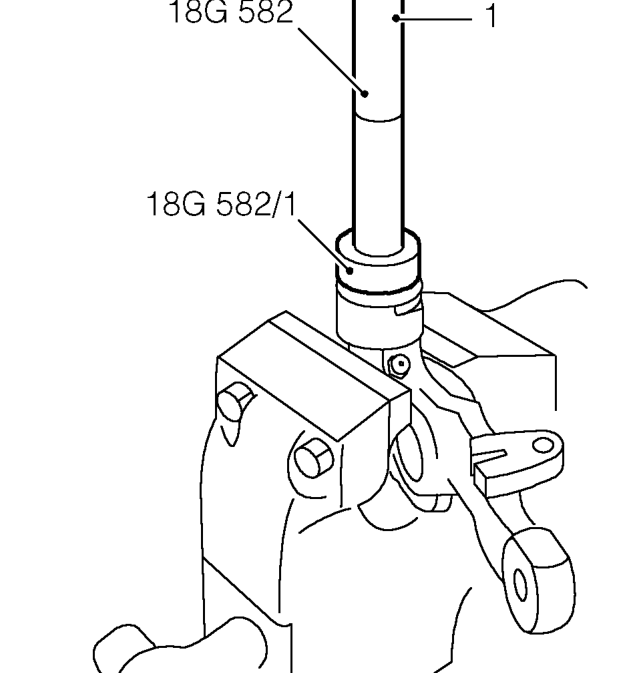

  1. Align and press NEW needle roller bearings into upper arm using tools 18G 582 and 18G 582/1.
  2. Refit upper arm. See this section.
  3. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  4. Remove stand(s) and lower vehicle.
