Front anti-roll bar

FRONT ANTI-ROLL BAR

Service repair no - 68.10.09

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

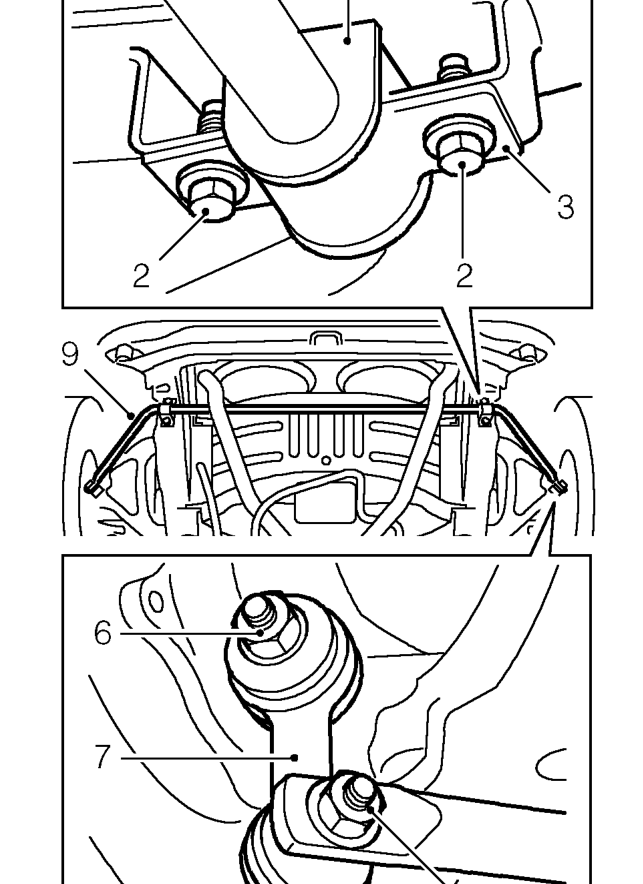

Anti-roll bar bushes

2. Remove 2 bolts securing each anti-roll bar bush, clamp to subframe.
3. Remove 2 clamps.
4. Remove 2 bushes.

Anti-roll bar links

5. Remove nut and bolt securing each link to anti-roll bar.
6. Remove nut securing anti-roll bar links to lower suspension arms.
7. Remove anti-roll bar links.
8. Check link bushes for wear.
9. Remove anti-roll bar.

Refit

1. Position anti-roll bar.

Anti-roll bar links

CAUTION: The head on the bolt connecting the link to lower arm must face forward, to allow clearance between bolt and front hub.

2. Fit anti-roll bar links to lower suspension arm bolts and fit nut, do not tighten at this stage.
3. Align anti-roll bar links to anti-roll bar and fit bolt and nut, do not tighten at this stage.

Anti-roll bar bushes

4. Clean anti-roll bar.
5. Fit bushes and align clamps to bolt holes.
6. Fit bolts to each anti-roll bar clamp and tighten to 22 Nm.
7. Tighten nuts and bolts securing anti-roll bar links to 35 Nm.
8. Remove stand(s) and lower vehicle.
