FRONT LOWER ARM

Service repair no - 68.20.10

Remove

Front lower arm – Service repair no - 68.20.10

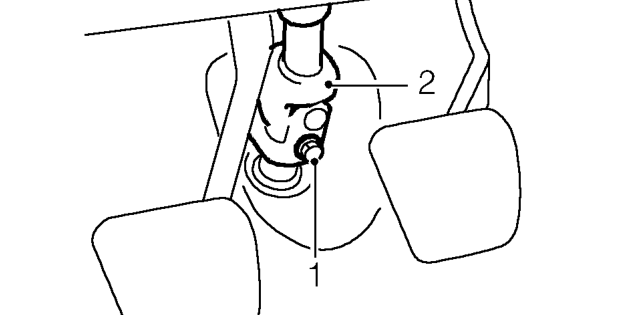

  1. Remove bolt securing steering column universal joint to rack pinion.
  2. Release column universal joint from rack pinion.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Place a jack under front hub and raise suspension.
Front lower arm – Place a jack under front hub and raise suspension.

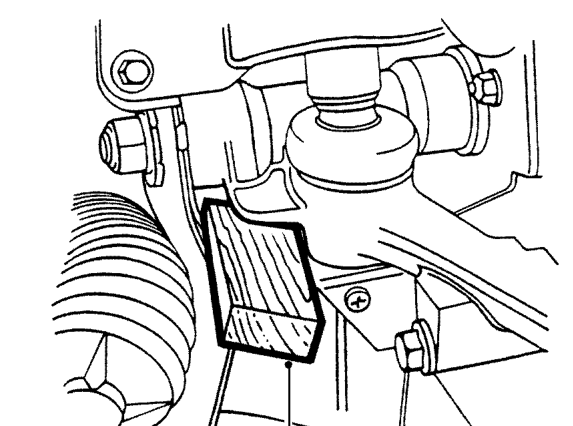

  1. Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occurring to the suspension components.

Front lower arm – Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove ja

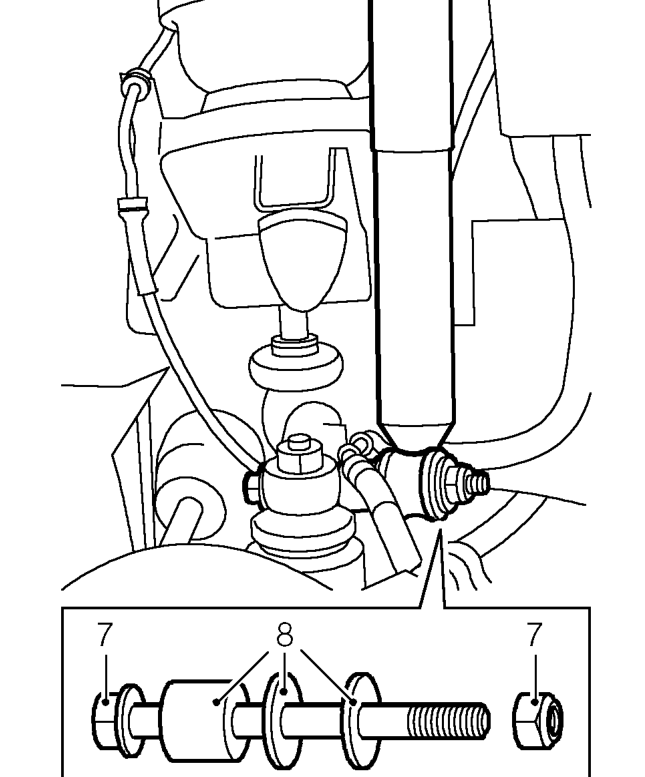

  1. Remove nut and bolt, securing brake hose to upper arm.
  2. Collect spacer and 2 washers.
  3. Repeat steps 5 to 8 on opposite side.
