UPPER BALL JOINT - REAR HUB

Service repair no - 68.25.27

Remove

  1. Raise rear of vehicle. Remove road wheel. Place jack under rear hub and raise suspension.

WARNING: Support on safety stands.

Upper ball joint - rear hub – Raise rear of vehicle. Remove road wheel. Place jack under rear hub and raise suspension.

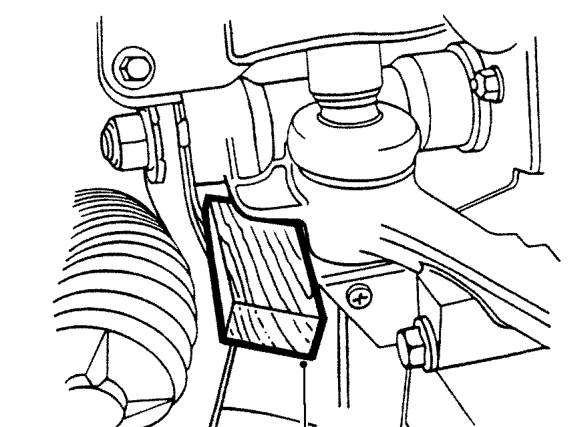

  1. Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occurring to the suspension components.

Upper ball joint - rear hub – Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove ja

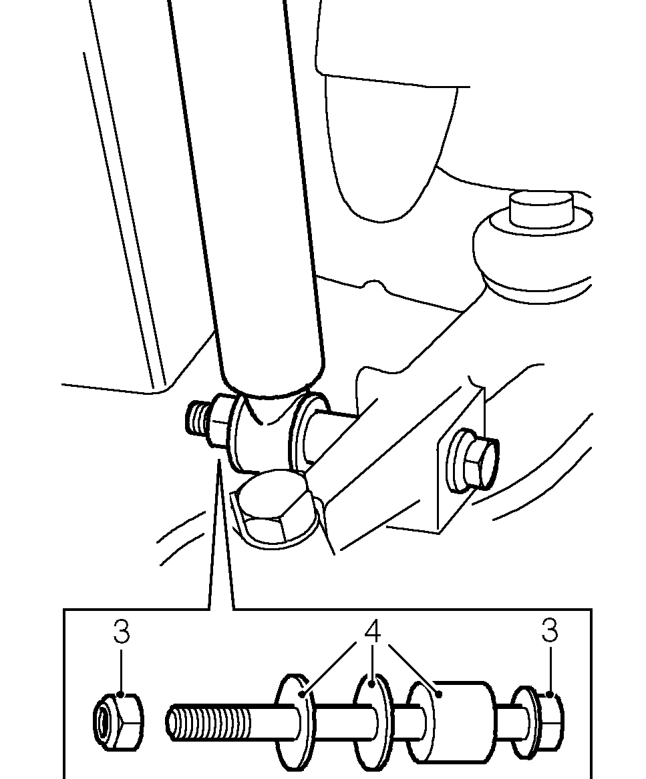

  1. Remove nut and bolt securing rear damper to upper arm.
  2. Collect spacer and 2 washers.
