REAR SUBFRAME - REAR MOUNTING

Service repair no - 68.40.09

Remove

  1. Raise vehicle on a 2 post ramp.
  2. Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

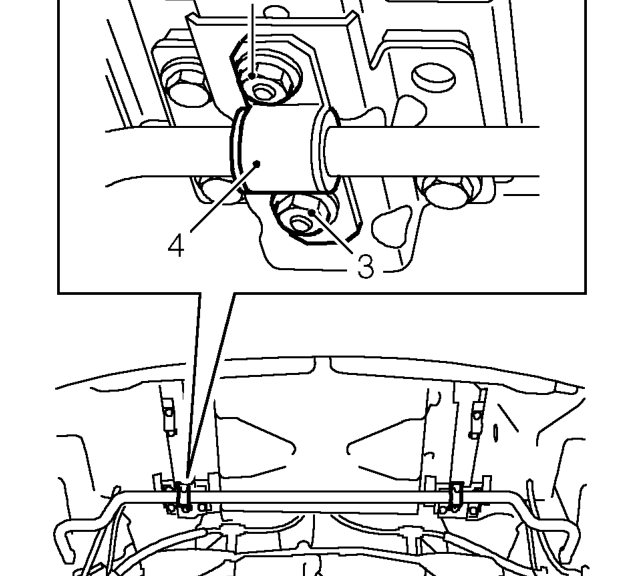

Rear subframe - rear mounting – Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Remove 2 nuts securing anti-roll bar, rubber bush to subframe.
  2. Remove rubber bush and clamping bracket from anti-roll bar.
  3. Support subframe with trolley jack.

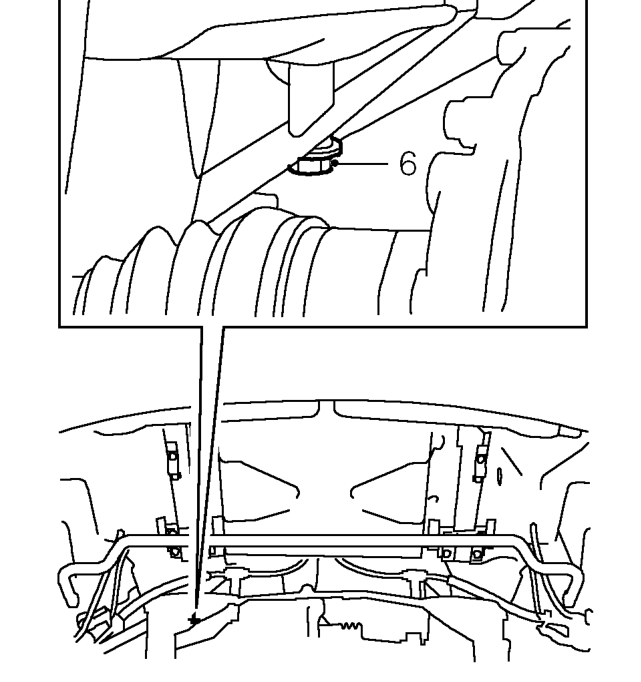

Rear subframe - rear mounting – Support subframe with trolley jack.
  1. Loosen rear mounting centre bolt.
