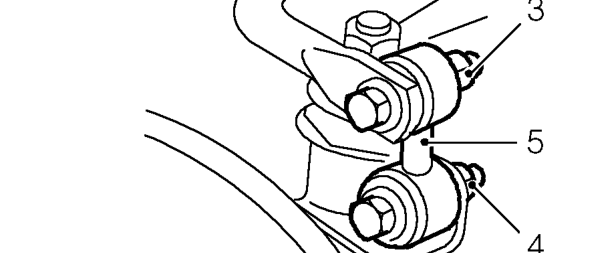

Rear anti-roll bar link

REAR ANTI-ROLL BAR LINK

Service repair no - 68.10.12

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

3. Remove nut and bolt securing anti-roll bar to link.
4. Remove nut and bolt securing anti-roll bar link to hub abutment bracket.
5. Remove anti-roll bar link.

Refit

1. Fit link to anti-roll bar, fit bolt and tighten nut to 35 Nm.
2. Align link to hub abutment bracket, fit bolt and tighten nut to 35 Nm.
3. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
4. Remove stand(s) and lower vehicle.

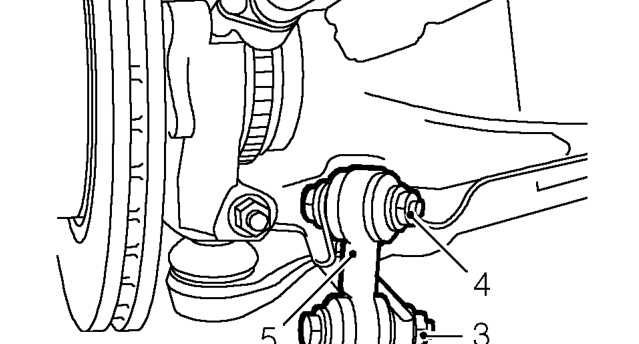

FRONT ANTI-ROLL BAR LINK

Service repair no - 68.10.14

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

3. Remove nut and bolt securing anti-roll bar to link.
4. Remove nut securing anti-roll bar link to lower arm.
5. Remove anti-roll bar link.

Refit

CAUTION: The head on the bolt connecting the link to lower arm must face forward, to allow clearance between bolt and front hub.

1. Fit anti-roll bar link to lower arm bolt and fit nut, do not tighten at this stage.
2. Align link to anti-roll bar, fit bolt and tighten nut to 35 Nm.
3. Tighten anti-roll bar link to lower arm nut to 35 Nm.
4. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
5. Remove stand(s) and lower vehicle.
