LOWER BALL JOINT - FRONT HUB

Service repair no - 68.25.06

Remove

  1. Remove front lower arm. See this section.

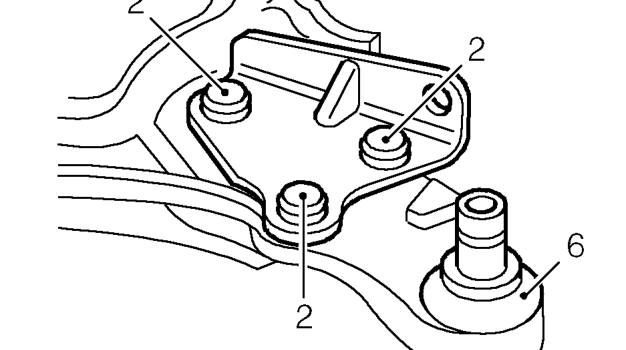

Lower ball joint - front hub – Remove front lower arm. See this section.
  1. Centre punch centres of rivet heads.
  2. Drill pilot hole in rivet heads.
  3. Enlarge pilot hole to remove rivets.

CAUTION: Do not enlarge holes in lower arm.

NOTE: Use pedestal drill for accuracy.

  1. Press out rivet studs.
  2. Remove ball joint assembly.

Refit

  1. Fit ball joint to lower arm.

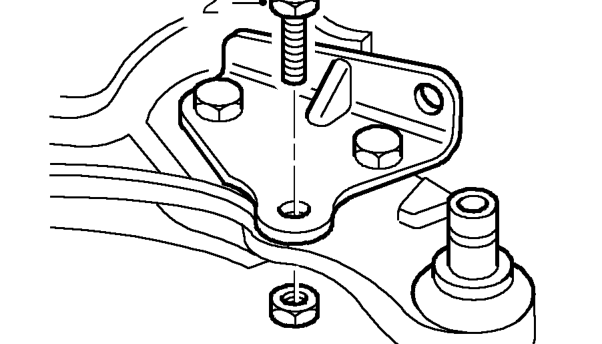

Lower ball joint - front hub – Fit ball joint to lower arm.
  1. Fit 3 bolts and nuts, tighten to 40 Nm.

NOTE: Ensure bolt heads are fitted above the arm.

  1. Fit front lower arm. See this section.
