REAR BUMP RUBBER

Service repair no - 68.15.02

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

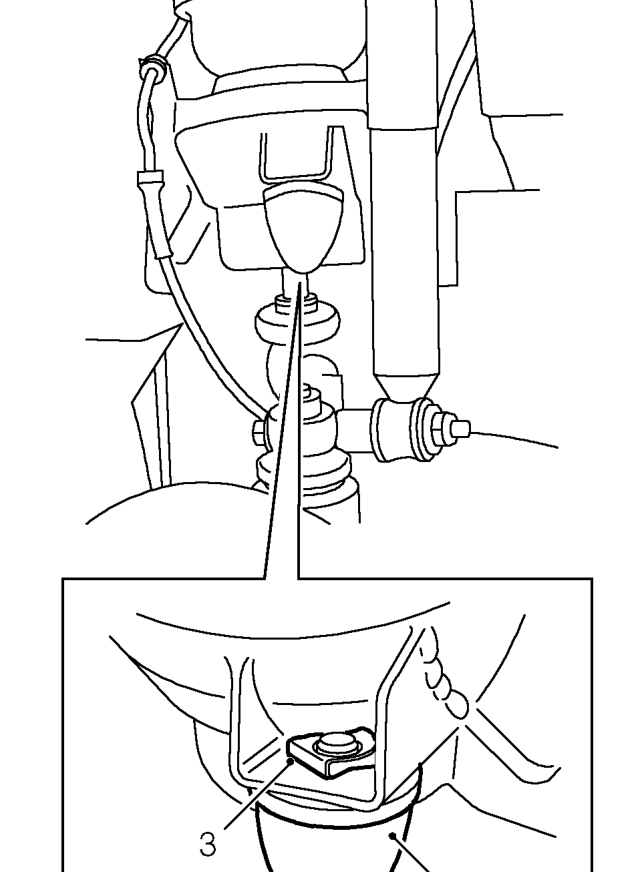

Rear bump rubber – Remove road wheel(s).
  1. Remove spring clip securing bump rubber to Hydragas unit retaining plate.
  2. Collect bump rubber.

Refit

  1. Fit bump rubber and secure with spring clip.
  2. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  3. Remove stand(s) and lower vehicle.

REBOUND RUBBERS

Service repair no - 68.15.08

Remove

  1. Raise vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Place trolley jack under hub and raise suspension.

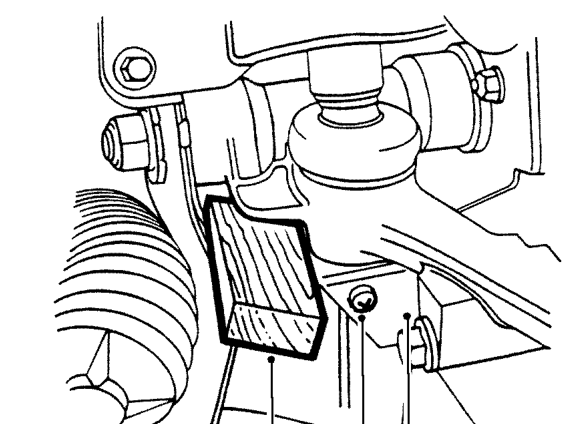

Rebound rubbers – Place trolley jack under hub and raise suspension.
  1. Fit wedge between suspension arm and subframe. Lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occurring to the suspension components.

  1. Release ABS sensor lead from bracket.
  2. Remove screw securing rebound rubber to subframe.
  3. Remove rebound rubber.
