REAR HUB BEARINGS

Service repair no - 68.25.38

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Knock back drive shaft nut stake.
  3. Remove drive shaft nut.
  4. Remove rear brake disc. See BRAKES, Repairs.

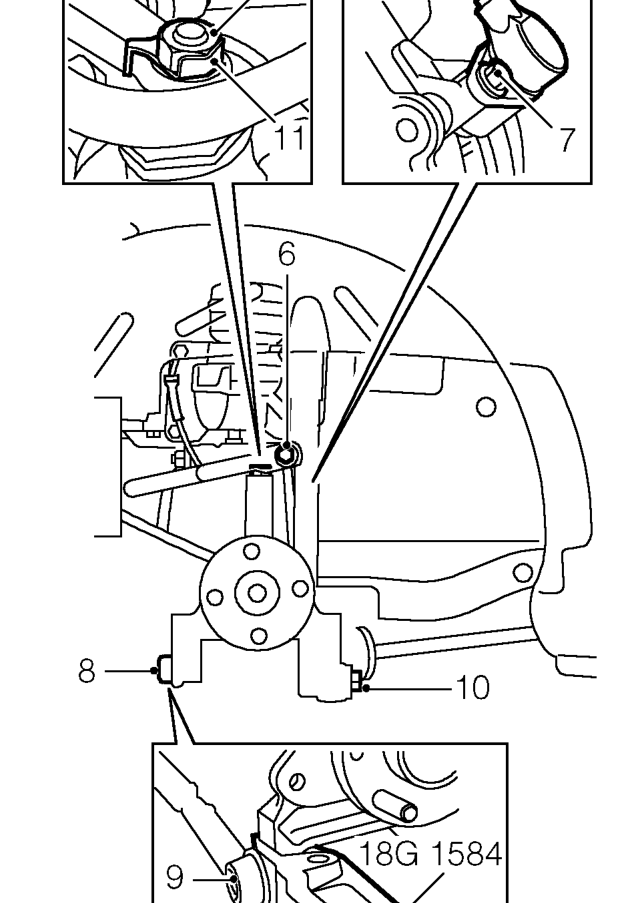

Rear hub bearings – Remove rear brake disc. See BRAKES, Repairs.
  1. Remove nut and bolt securing anti-roll bar to link.
  2. Remove bolt securing ABS sensor to hub, release sensor and position aside.
  3. Remove nut securing track control arm to hub.
  4. Release taper joint using tool 18G 1584.
  5. Remove bolt securing lower arm to hub.
  6. Bend back tab washer from upper ball joint nut.
  7. Remove nut and tab washer from upper arm ball joint.
  8. Release taper joint from upper arm using tool 18G 1584.
  9. Remove rear hub assembly from drive shaft.

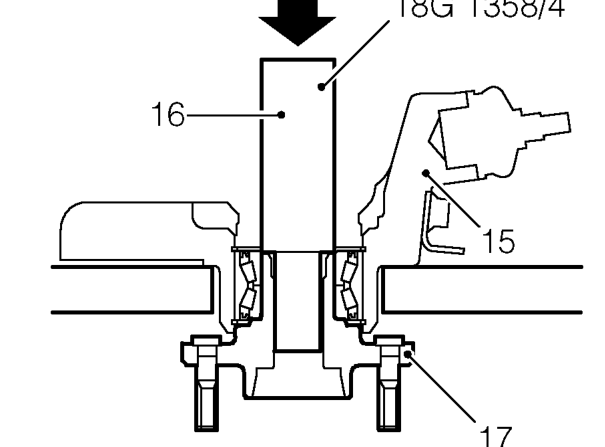

Rear hub bearings – Remove rear hub assembly from drive shaft.
  1. Position hub to press.
  2. Press out drive flange using tool 18G 1358/4.
  3. Collect drive flange.
  4. Remove hub from press.

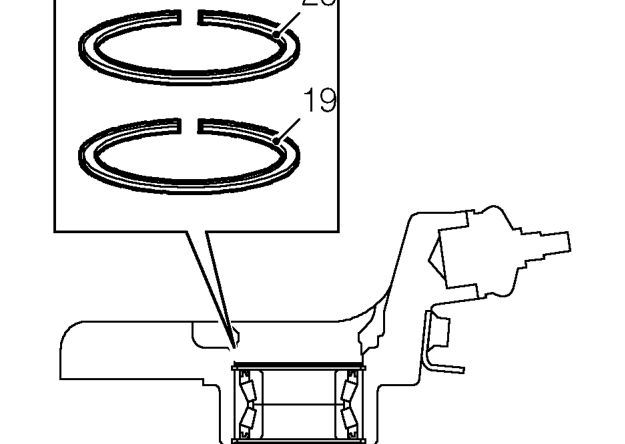

Rear hub bearings – Remove hub from press.
  1. Remove bearing outer circlip.
  2. Remove bearing inner circlip.
