REAR SUBFRAME

Service repair no - 68.40.07

Remove

  1. Remove engine and gearbox assembly, See ENGINE, Repairs.
Rear subframe – Remove engine and gearbox assembly, See ENGINE, Repairs.

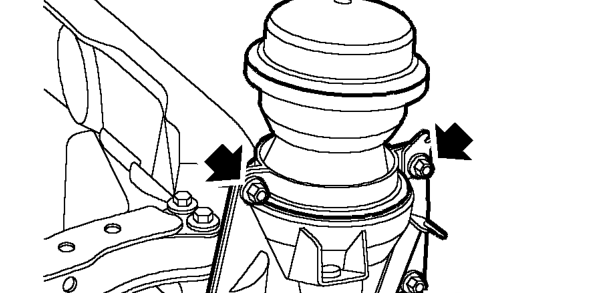

  1. Remove 4 bolts securing right hand hydragas unit retaining plate.
  2. Collect retaining plate, ABS sensor lead bracket, and hydragas unit.
Rear subframe – Collect retaining plate, ABS sensor lead bracket, and hydragas unit.
  1. Remove large nuts either end of top arm pivot shaft.
  2. Remove 2 bolts securing pivot shaft retaining plate.
  3. Remove pivot shaft from subframe.
  4. Remove top arm and knuckle joint ball pin from subframe and collect thrust washers and sealing rings.

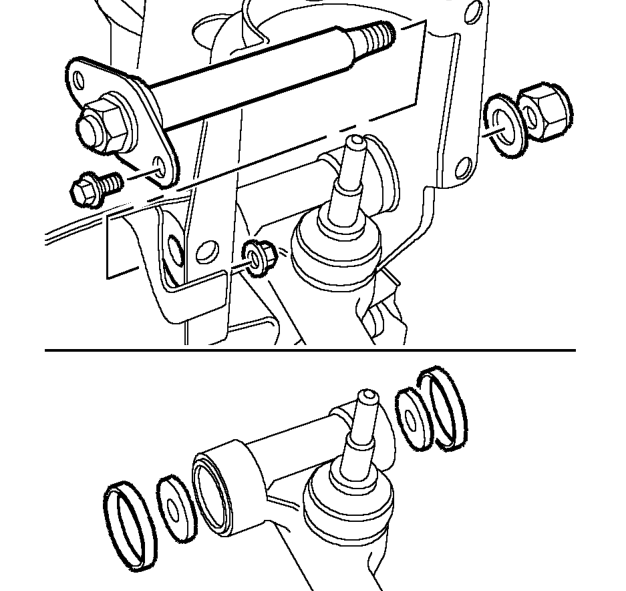

Rear subframe – Remove top arm and knuckle joint ball pin from subframe and collect thrust washers and sea
  1. Remove bolt securing right hand track control arm to subframe.

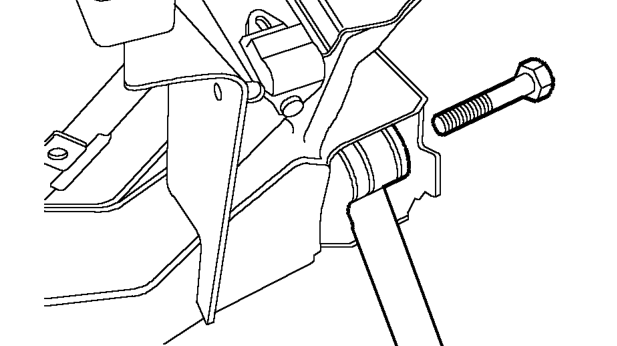

  2. Remove track control arm from subframe.
