14 · Steering & suspension

Rear subframe (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionRear subframe · page 2 of 3
Diagram

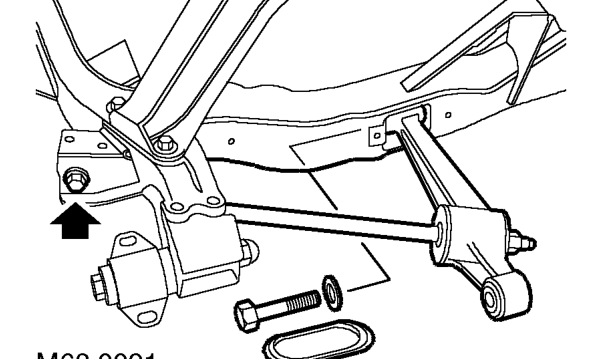

  1. Remove nut securing right hand brake reaction rod to lower arm.
  2. Remove bolt securing brake reaction rod to subframe. Remove arm and collect washers and rubbers.
  3. Remove bolt securing lower arm to subframe and remove arm.
  4. Repeat strip down process for left hand suspension.

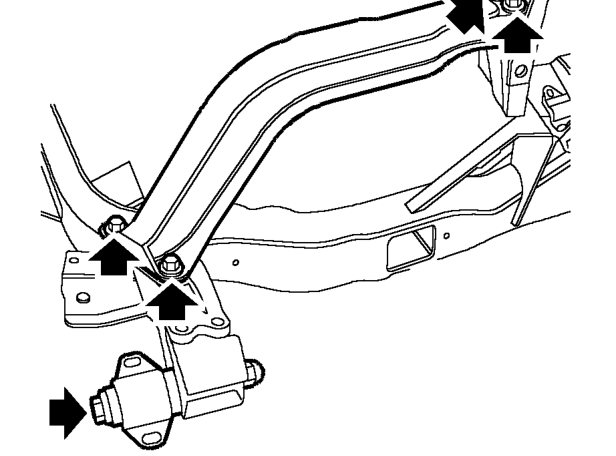

Repeat strip down process for left hand suspension.
  1. Remove 4 bolts securing left hand buttress to subframe and remove buttress.
  2. Remove bolt securing right hand front subframe mounting, and collect mounting.

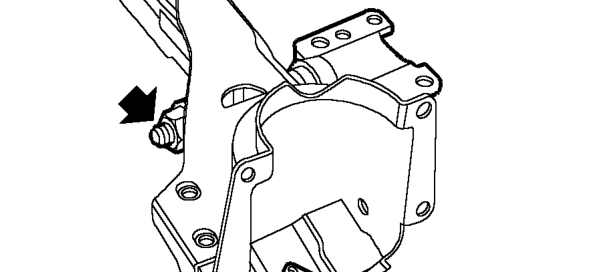

Remove bolt securing right hand front subframe mounting, and collect mounting.
  1. Remove bolt securing right hand rear subframe mounting, and collect mounting.
  2. Repeat process for left hand subframe mountings.
