SUBFRAME - FRONT

Service repair no - 68.40.01

Remove

  1. Position vehicle on ’2-post’ ramp.
  2. Disconnect battery earth lead.
  3. Disconnect battery positive lead.
  4. Release main fuse and fuse box connectors, and release from clips. Position lead aside.
Subframe - front – Release main fuse and fuse box connectors, and release from clips. Position lead aside.

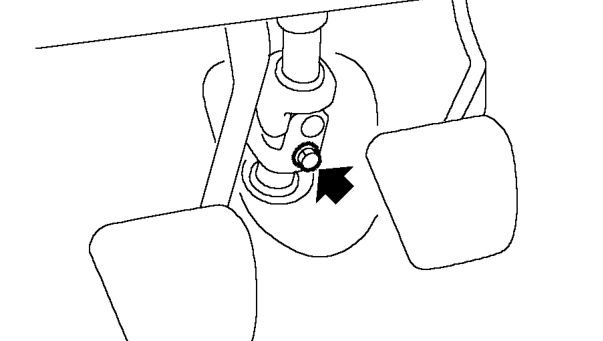

  1. Remove bolt securing steering column universal joint to steering rack.
  2. Release steering column from steering rack.
  3. Models with A/C: Evacuate A/C system. See AIR CONDITIONING, Adjustments.
  4. All models: Depressurise both sides of hydragas system. See Adjustments.
Subframe - front – All models: Depressurise both sides of hydragas system. See Adjustments.

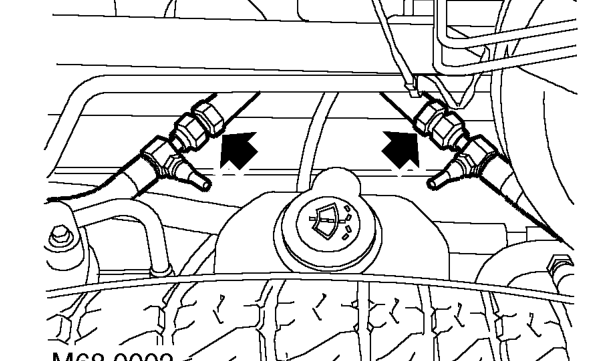

  1. Disconnect hydragas pipe unions from valves.
  2. Remove and discard ’O’ rings.

CAUTION: Plug the connections.

  1. Remove front road wheels.
Subframe - front – Remove front road wheels.

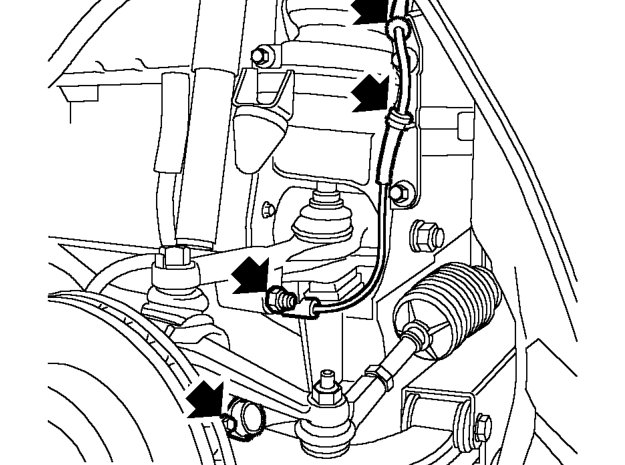

  1. Remove nut and bolt securing LH damper to hub.
  2. Remove bolt securing LH ABS sensor to caliper. Release sensor and collect spacer.
  3. Release sensor lead from grommets.
