14 · Steering & suspension

Subframe - front (page 2 of 6)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionSubframe - front · page 2 of 6
Diagram

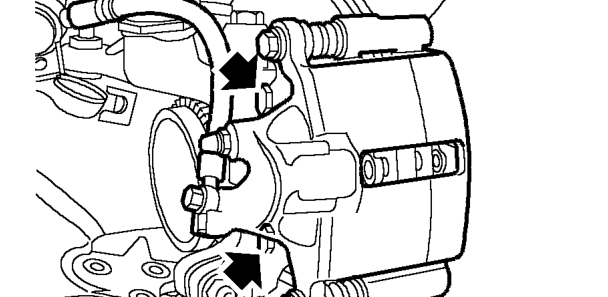

  1. Remove 2 bolts securing LH front brake caliper to hub and release caliper from hub.
  2. Tie caliper aside.
  3. Repeat above operations for other side.
  4. Raise vehicle on ramp.
  5. Drain cooling system. See COOLING SYSTEM, Adjustments.
  6. Steptronic EM-CVT models: Drain gearbox fluid. See AUTOMATIC GEARBOX - ’EM-CVT’, Adjustments.

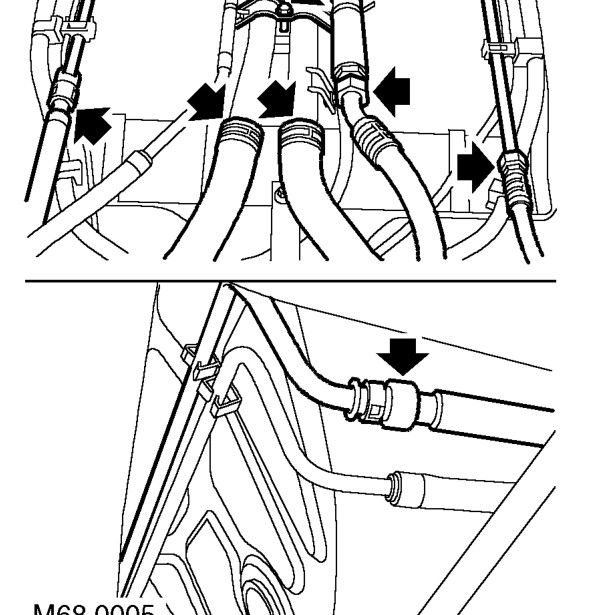

  7. Loosen fluid cooler pipe unions and release fluid cooler pipes.
Loosen fluid cooler pipe unions and release fluid cooler pipes.
  1. All models: Remove nut and bolt securing coolant pipe support bracket and remove bracket.

CAUTION: Plug the connections.

  1. Release clips and disconnect coolant hoses under floor.
  2. Models with A/C: Loosen A/C pipe unions under floor and release pipes, remove and discard ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
