Tie bar - rear

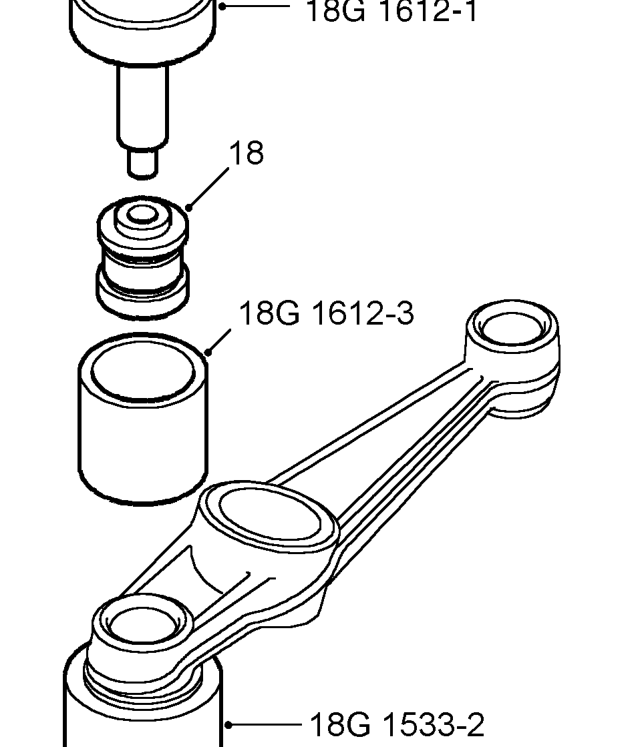

Outer bush

8. Lubricate outer bush with Marlene 148 rubber lubricant.
9. Support lower arm on tool 18G 1533-2.
10. Insert outer bush into guide tool 18G 1612-3.
11. Position guide tool to top of lower arm.
12. Insert tool 18G 1612-1 into top of outer bush.
13. Press outer bush into position.
14. Fit lower arm. See this section.

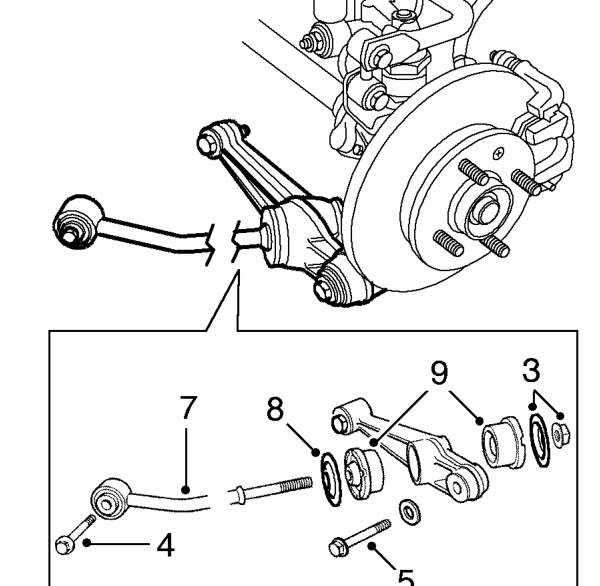

TIE BAR - REAR

Service repair no - 68.35.13

Remove

CAUTION: The two bevelled washers fitted behind the tie bar to lower arm bushes are marked either front or rear. They must be fitted in their correct positions.

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

3. Remove nut securing tie bar to lower arm, collect rear washer.
4. Remove bolt securing tie bar to subframe.
5. Remove bolt securing lower arm to hub.
6. Hinge lower arm down and remove tie bar from subframe.
7. Remove tie bar from lower arm.
8. Collect front washer.
9. Remove both tie bar bushes from lower arm.
