MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Front hub bearings

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Front hub bearings
SuspensionFront hub bearings · page 1 of 3

FRONT HUB BEARINGS

Service repair no - 68.25.13

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Knock back hub nut stake.
  3. Remove hub nut.
  4. Place jack under hub and raise hub.

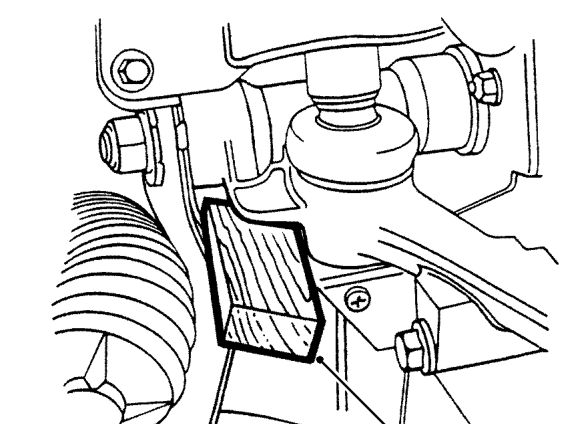

Front hub bearings – Place jack under hub and raise hub.
  1. Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occurring to the suspension components.

  1. Remove front brake disc. See BRAKES, Repairs.
Front hub bearings – Remove front brake disc. See BRAKES, Repairs.

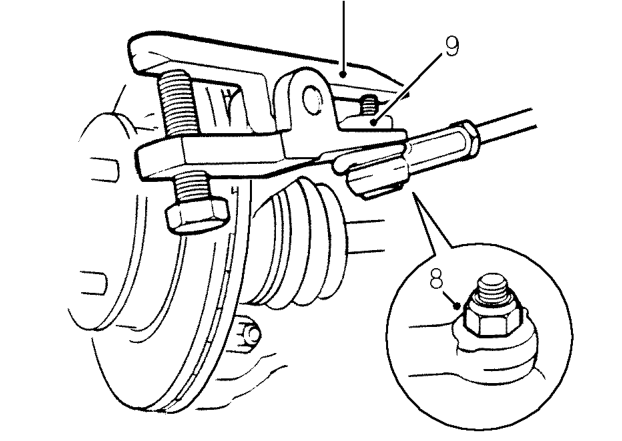

  1. Remove nut securing track-rod end to steering arm.
  2. Release taper joint using tool 18G 1584.

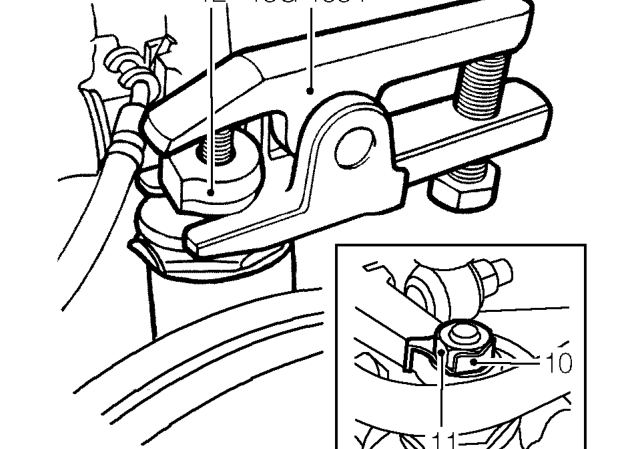

Front hub bearings – Release taper joint using tool 18G 1584.
  1. Bend back tab washer from ball joint nut.
  2. Remove nut and tab washer securing ball joint to upper arm.
  3. Release taper joint from upper arm using tool 18G 1584.
