MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Front hub bearings (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront hub bearings · page 2 of 3

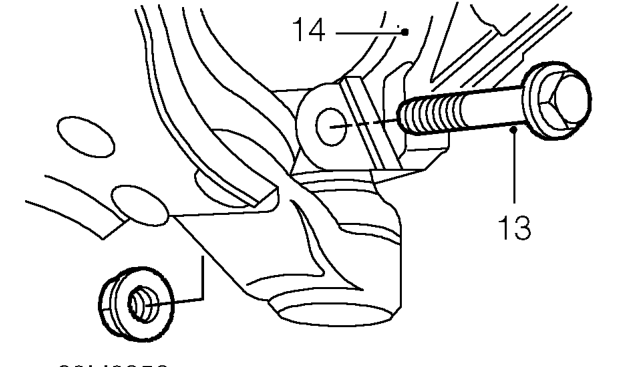

Diagram
  1. Remove nut and bolt securing hub to lower arm, ball joint.
  2. Release hub from lower ball joint.
  3. Remove front hub assembly.
Remove front hub assembly.

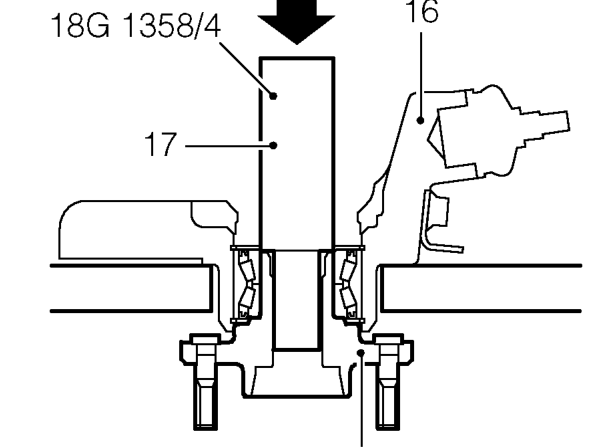

  1. Position hub to press.
  2. Press out drive flange using tool 18G 1358/4.
  3. Collect drive flange.
  4. Remove hub from press.
Remove hub from press.

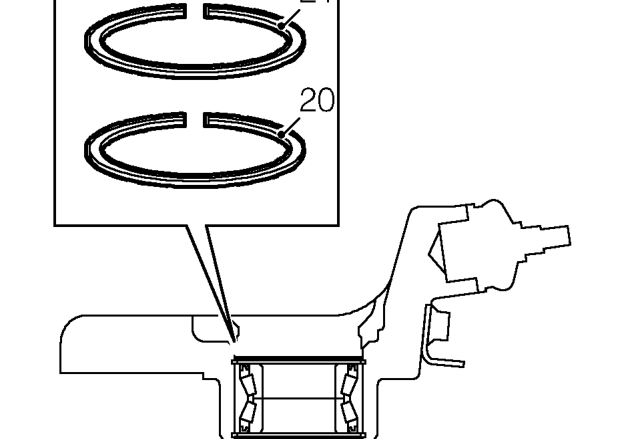

  1. Remove bearing outer circlip.
  2. Remove bearing inner circlip.
Remove bearing inner circlip.

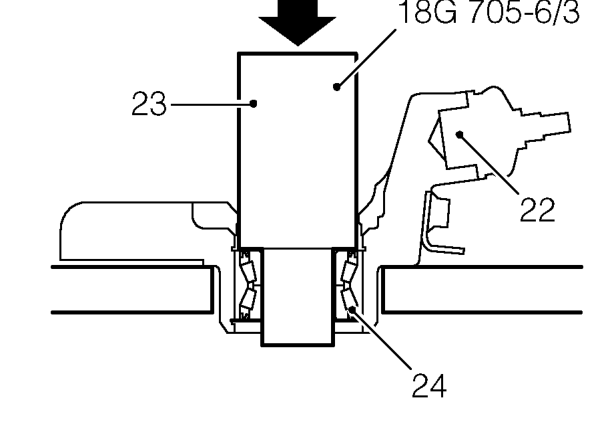

  1. Position hub to press.
  2. Fit tool 18G 705-6/3 to bearing.
  3. Press out bearing.
  4. Remove hub from press.
